Chapter 4 — Media Load
EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version) 31

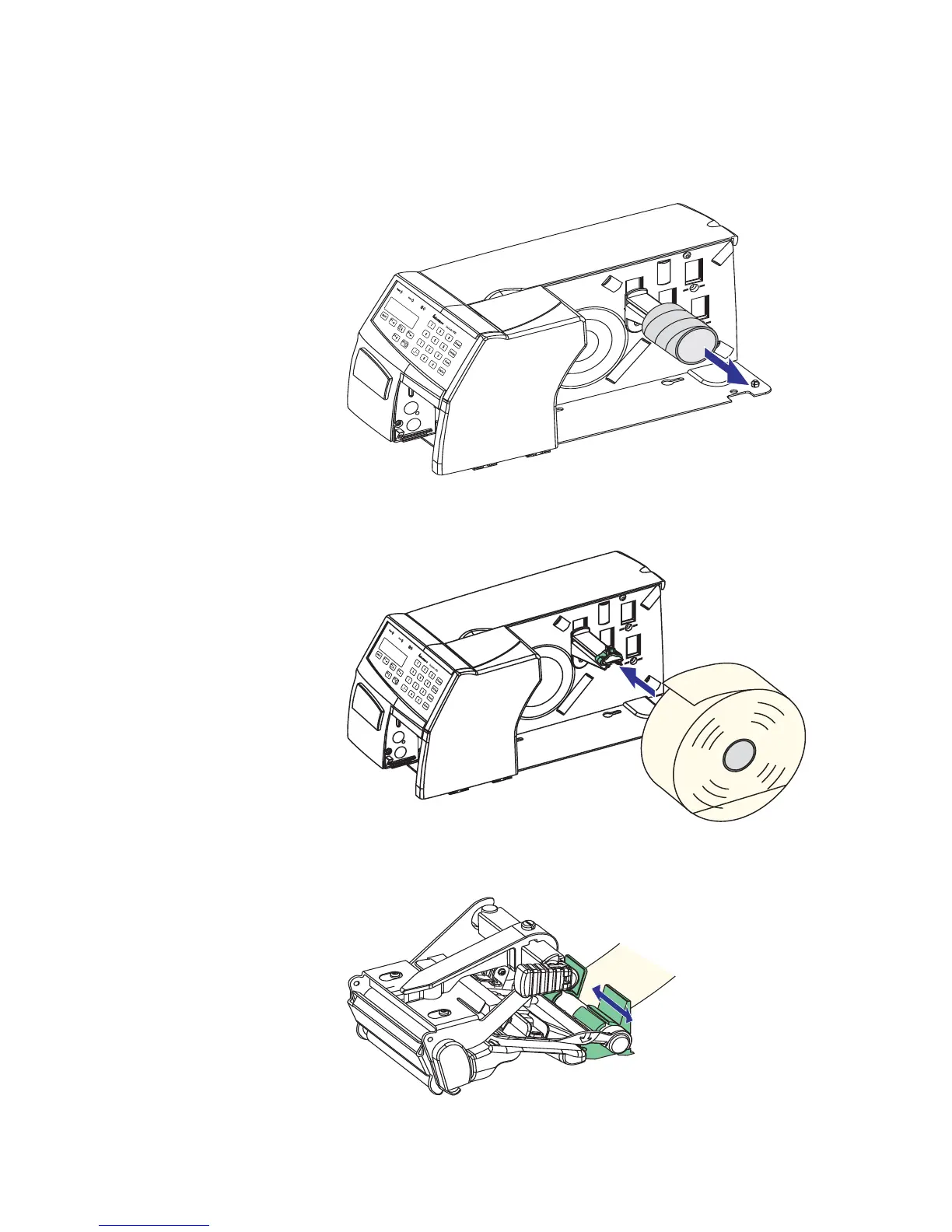

To load tear-off media with Quick-Load
1 Remove any empty core from the media supply roll post.
2 Fit a new roll of media on the supply post and adjust the edge
guide, so the roll becomes flush with the center section.
3 If necessary, adjust the outer quick-load guide to fit the width
of the media.
2
1
4
3
bw
fw
