Chapter 4 — Media Load
34 EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version)

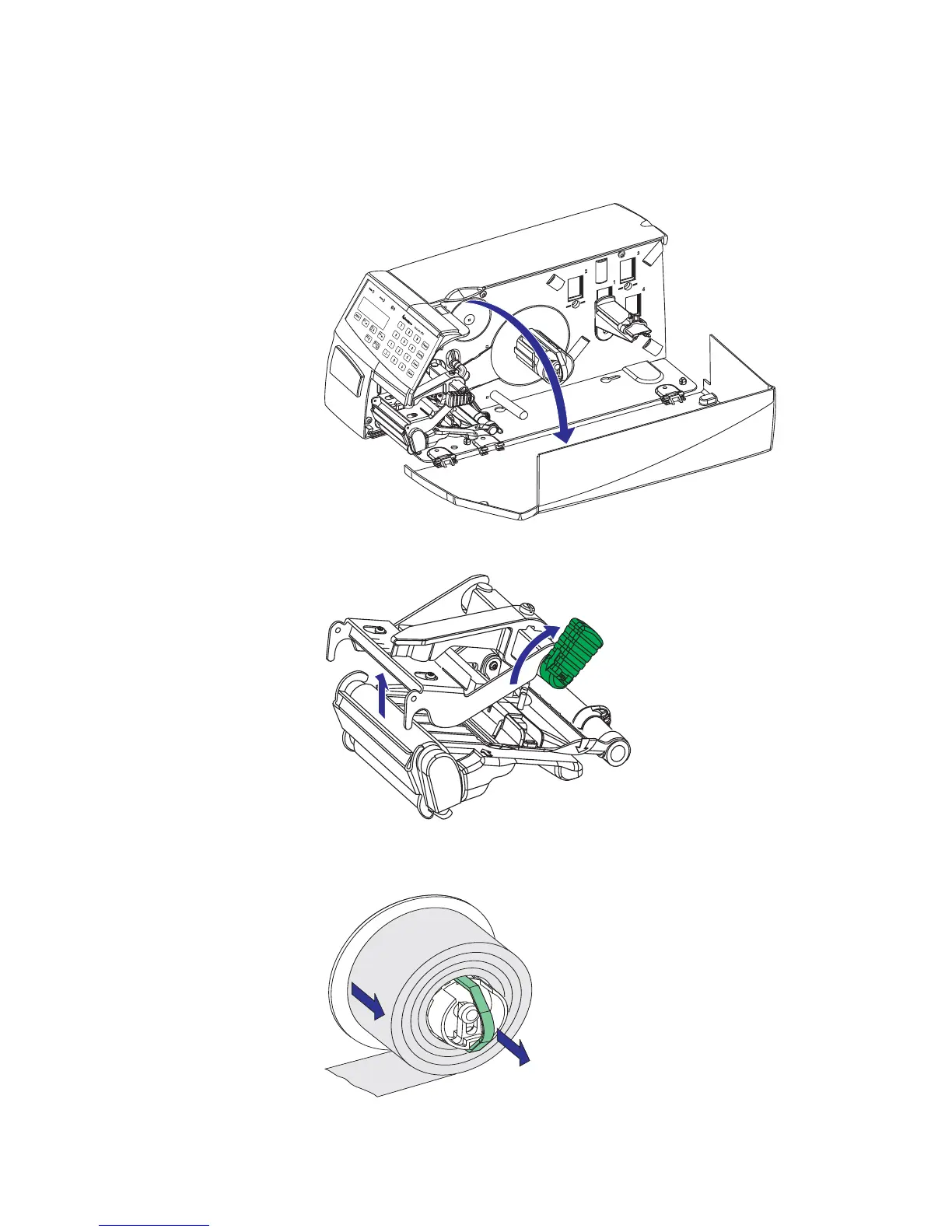

To load Peel-Off media
1 Open the side door.
2 Turn the printhead lift lever clockwise to raise the printhead.
3 Pull out the handle to collapse the takeup hub, then remove
any liner.
