Chapter 5 — Thermal Transfer Printing
EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version) 43

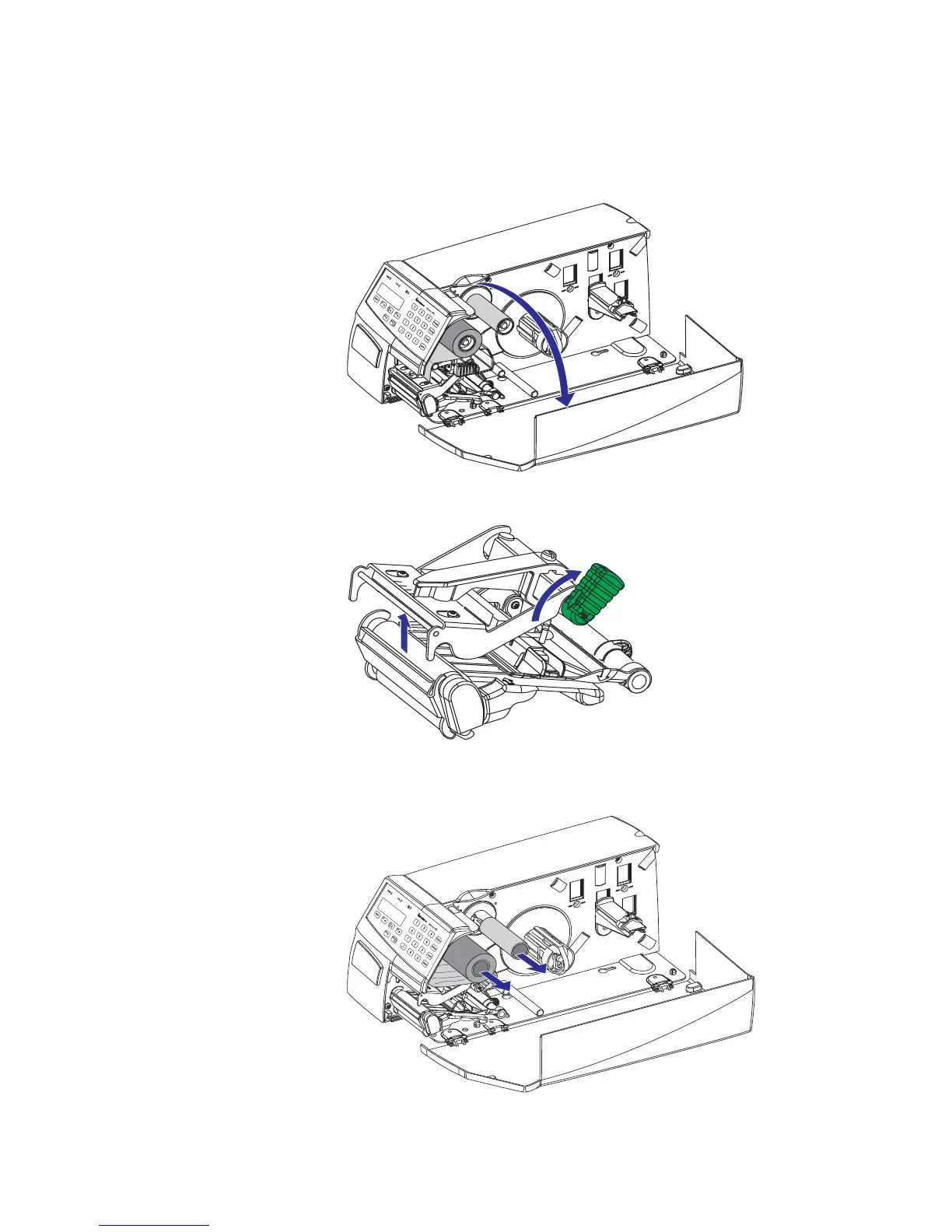

To load transfer ribbon mechanism
1 Open the side door.
2 Turn the printhead lift lever clockwise to raise the printhead.
3 In case of ribbon reload, remove any used ribbon and empty
ribbon core.
2
1
4
3
bw
fw
2
1
4
3
bw
fw
