Chapter 5 — Thermal Transfer Printing
EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version) 45

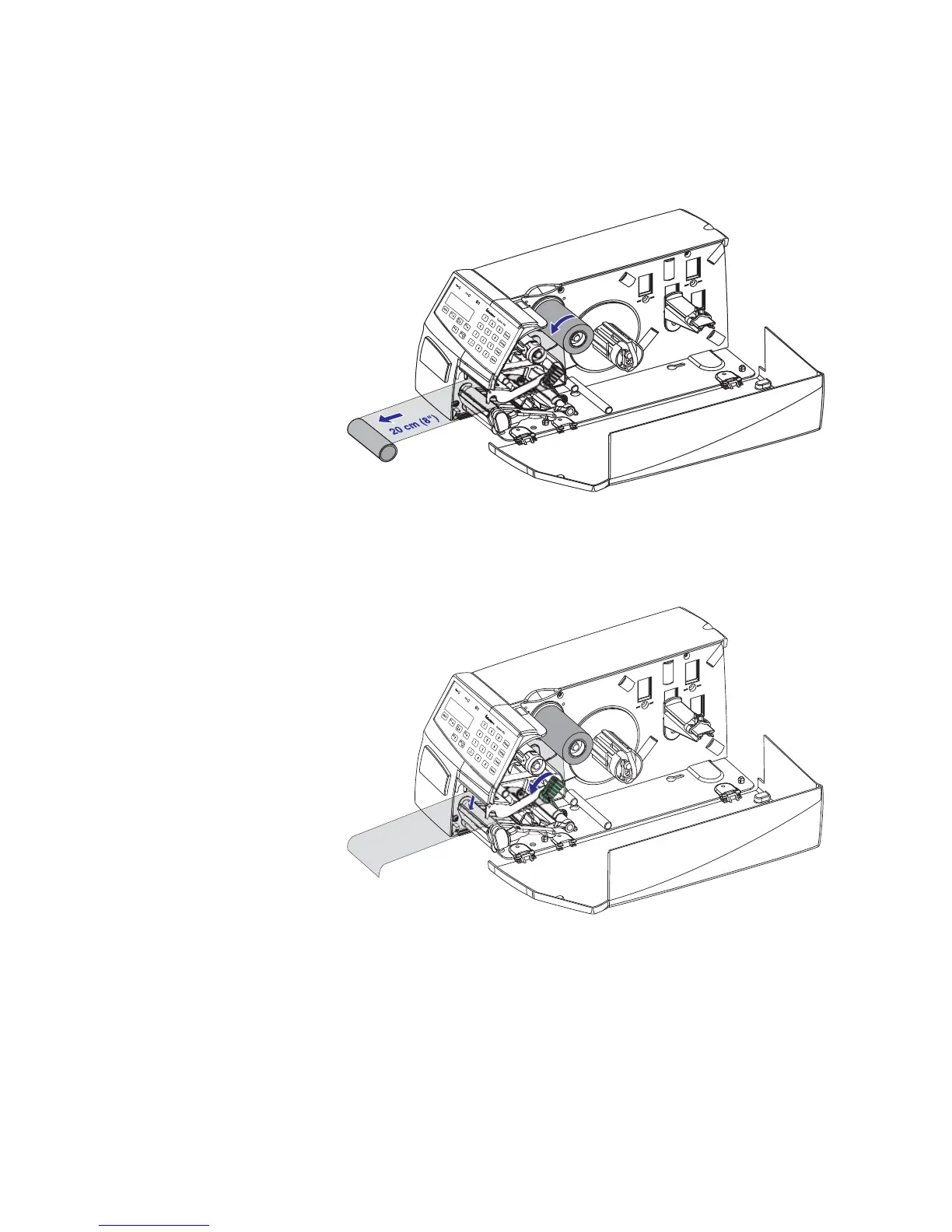

6 Route the ribbon through the print mechanism and pull out
approximately 20 cm (8 inches) of ribbon.
7 Without releasing the ribbon, turn the printhead lift lever
counterclockwise to engage the printhead and lock the
ribbon.
2
1
4
3
bw
fw
To Next Page
