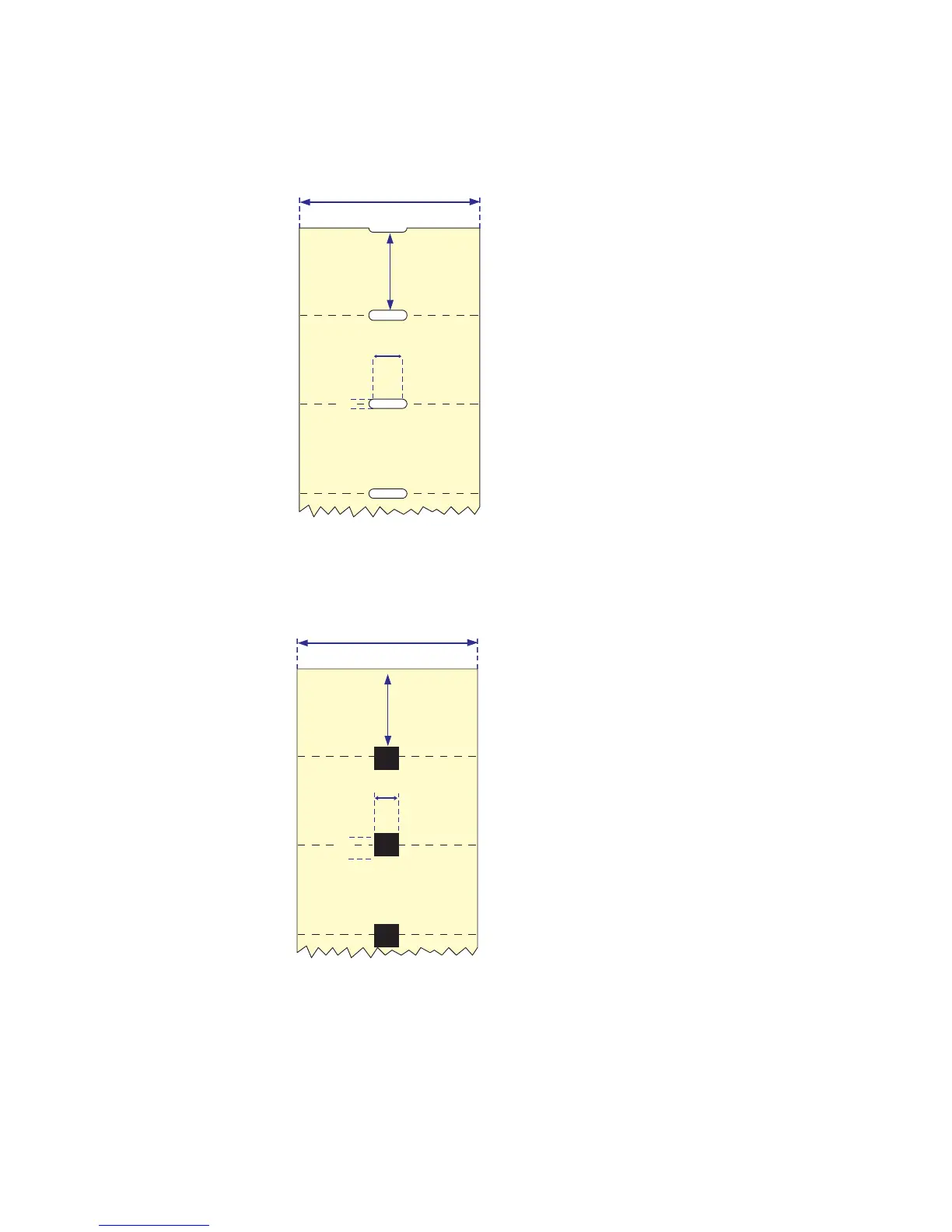

Tags and Strip with Slots
Tag or strip width (a)
Maximum: 116.0 mm (4.57 in)
Minimum: 25.0 mm (1.00 in)
Tag length (b)
Minimum: 12.7 mm (0.50 in)
Detection slot width (c)
Minimum: 14 mm (0.55 in)
Detection slot height (d)
Maximum: 10 mm (0.39 in)
Minimum: 3 mm (0.12 in)
The label gap sensor is offset 2.5 mm
(0.10 in) to the left of the center of the
media path.
Tags and Strip With Black Marks
Tag or strip width (a)
Maximum: 116.0 mm (4.57 in)
Minimum: 25.0 mm (1.00 in)
Tag length (b)
Minimum: 12.7 mm (0.50 in)
Detection slot/Black mark width (c)
Minimum: 14 mm (0.55 in)
Black mark height (d)
Maximum: 10 mm (0.39 in)
Minimum: 3 mm (0.12 in)
The black mark sensor is centered on
the media path.
Maximum reflectance 5% at 940
nanometers. Carbon black.
