Intermec SG20T User Manual

Chapter 1 — Introducing the SG20T Tethered Scanner
SG20T Tethered Scanner User’s Guide 7

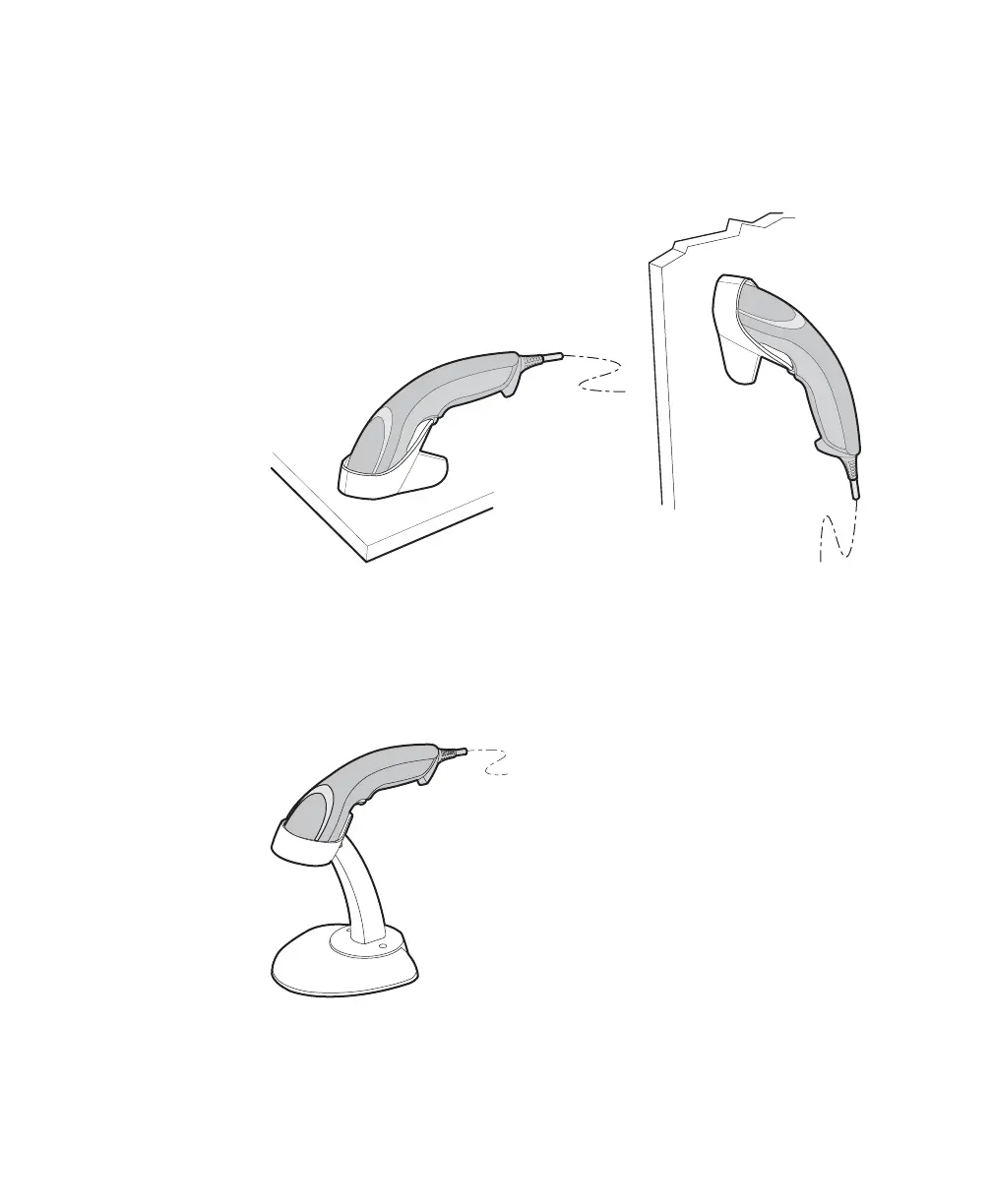

Desktop / Wall Mount
The desktop/wall mount holder can be used to store the SG20T when
you are not using it. You can attach the holder with screws either to a
desk or to a wall.
SG20T Desktop / Wall Mount Holder: P/N Holder-SG20-xx
Desktop Adjustable Stand
The desktop adjustable stand can be used to adjust the scanning
angle when using the SG20T as a hands-free scanner (must change
the default trigger setting) or to store it when you are not using it.
SG20T Desktop Adjustable Stand: P/N Stand-SG20-xx

Intermec SG20T Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D
Optical sensor resolution	- pixels
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Product color	Gray
Built-in display	No
International Protection (IP) code	IP30
Input voltage	5 V
Power consumption	120 mA
Power source type	DC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	200 mm
Width	61 mm
Height	65 mm
Weight	125 g
