Chapter 3 — SG20T Interfaces
18 SG20T Tethered Scanner User’s Guide
USB Interface
The SG20T can be connected to a USB host using one of the USB
cables. The SG20T is USB 2.0 and operates at full speed. Power is
provided either by the host or by the external power supply connected
to the USB cable. See the
Accessories” on page 6 for a list of part
numbers for the different cables.

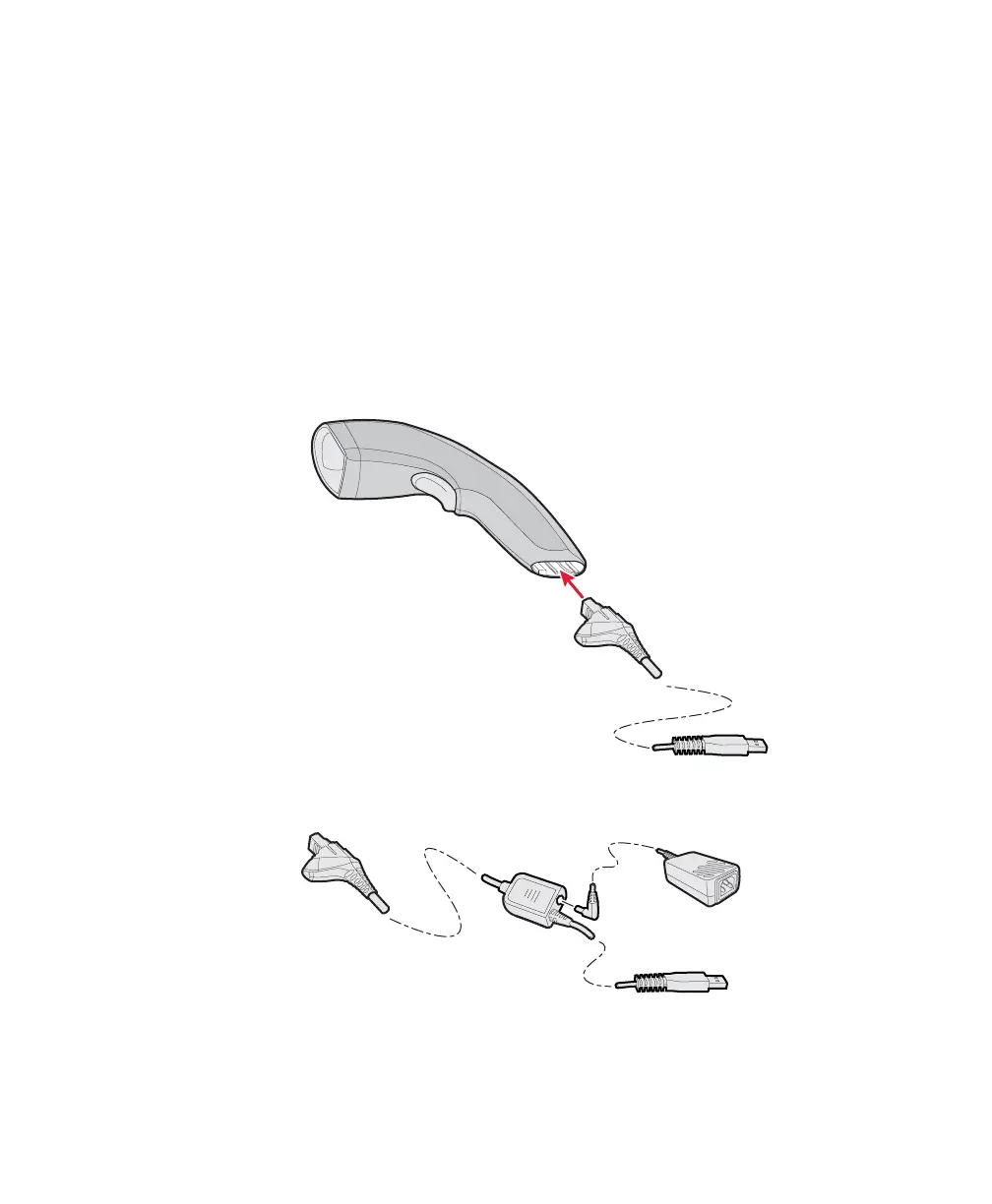

Connecting a USB Cable
To connect with a USB cable
1 Connect the USB cable to your SG20T and to the host.
2 Connect the power supply to the cable and an AC power outlet if
you are using the externally powered USB cable.
Standard USB cable
USB cable with power jack

Table of Contents

Other manuals for Intermec SG20T

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intermec SG20T and is the answer not in the manual?

Intermec SG20T Specifications

General IconGeneral
TypeHandheld bar code reader
Sensor type-
Scanner type1D
Optical sensor resolution- pixels
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supportedNot supported
Standard interfacesUSB
Connectivity technologyWired
Product colorGray
Built-in displayNo
International Protection (IP) codeIP30
Input voltage5 V
Power consumption120 mA
Power source typeDC
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 95 %
Weight and Dimensions IconWeight and Dimensions
Depth200 mm
Width61 mm
Height65 mm
Weight125 g
