Product information

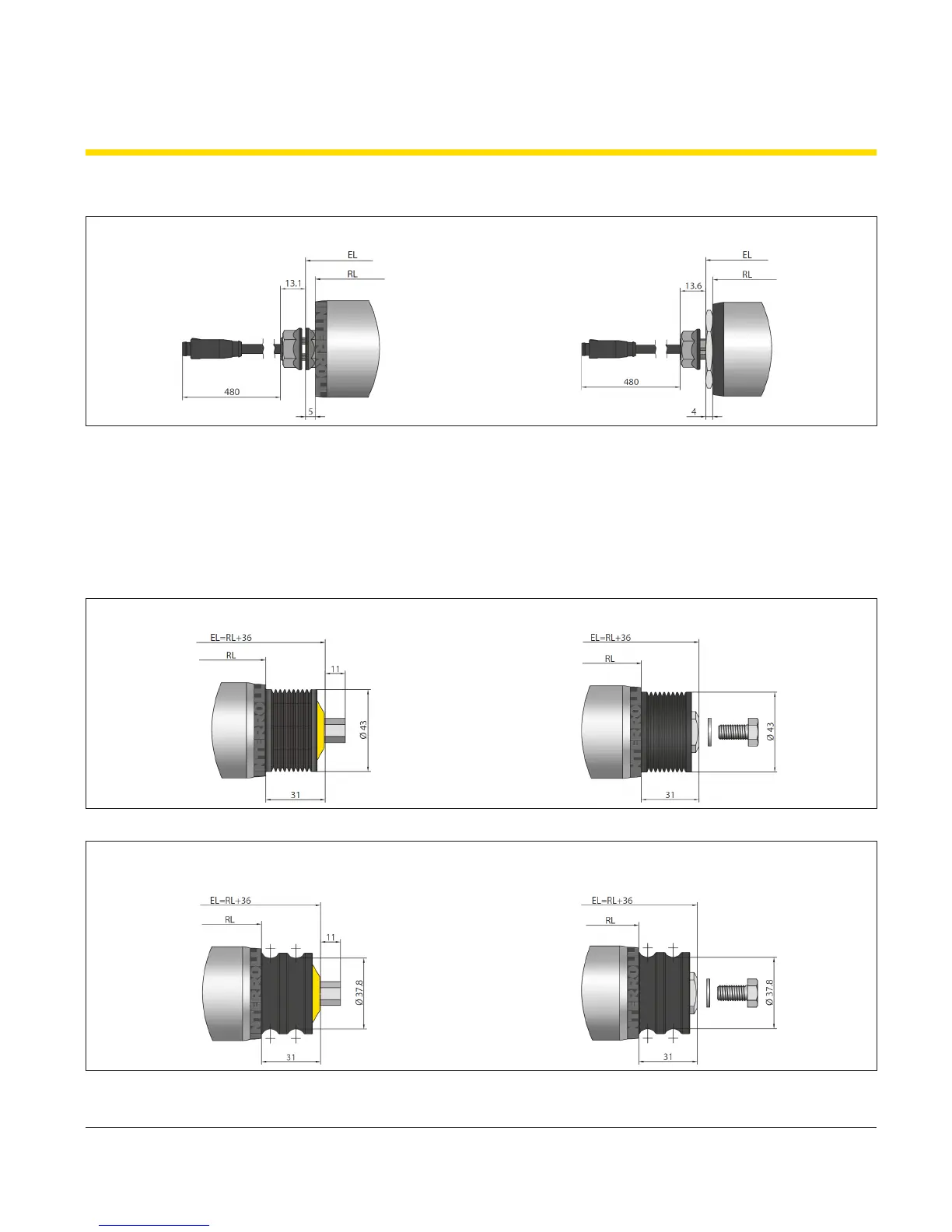

3.9 Dimensions of the motor shaft
Version with degree of protection IP54 Version with degree of protection IP66
RL = Reference length/order length

3.10 Dimensions of the bearing housings on the non-cable side
EC310 and EC310 DF
PolyVee drive head with 11 mm hexagonal spring shaft PolyVee drive head with M8 internal thread attachment
Round belt drive head with 11 mm hexagonal spring
shaft
Round belt drive head with M8 internal thread
attachment
