Assembly and installation

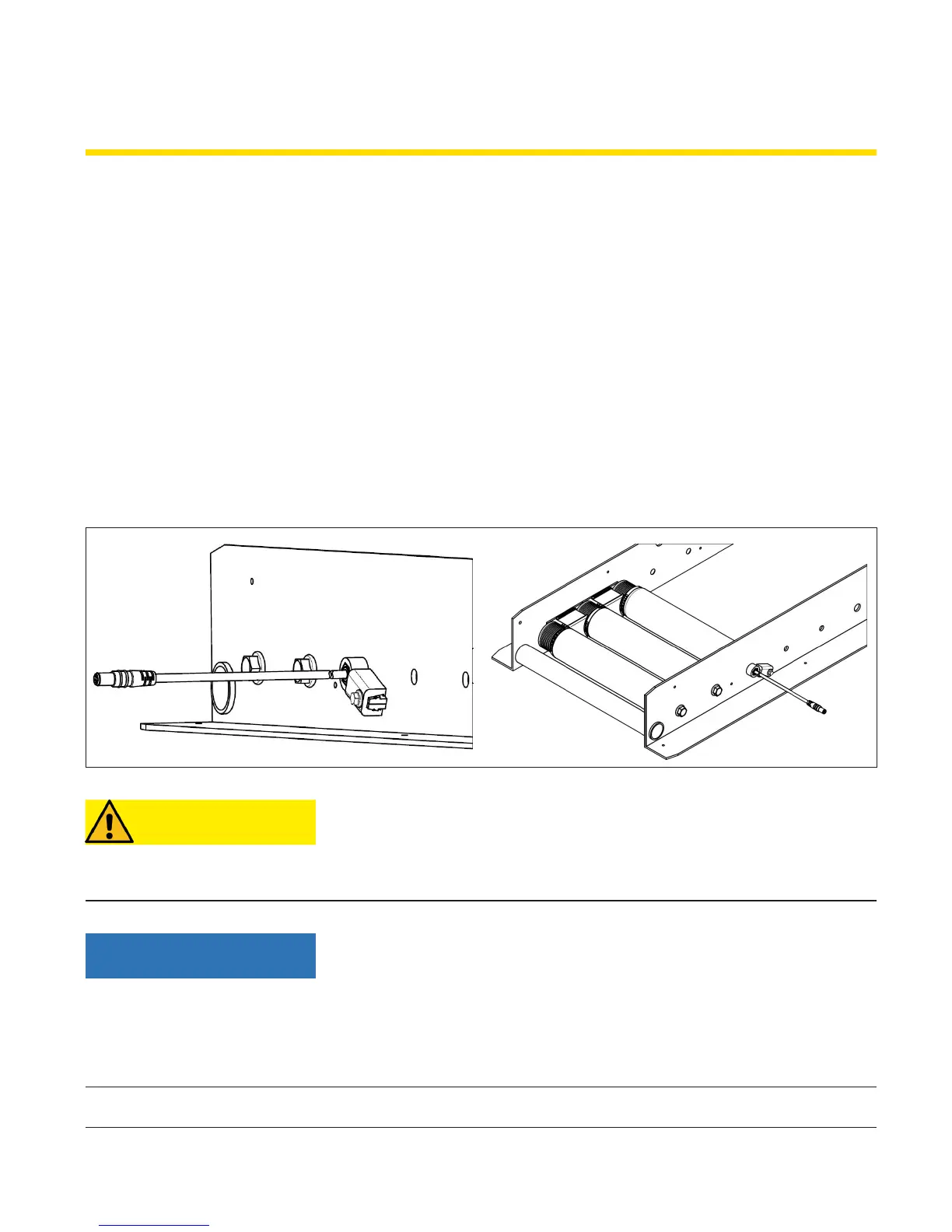

The Interroll Interlock (optional)
Instead of the nut included in the scope of delivery, the Interlock is slid over the RollerDrive cable and attached to the
conveyor frame using the corresponding screw.
The self-tapping screw provided eliminates the need for pre-drilling.
Alternatively, the Interlock can also be attached using an M5 threaded bolt.
frame and prevents it from twisting.
¾
¾ Slide the Interroll Interlock over the RollerDrive cable and place it on the attachment shaft.
¾
and hexagonal spanner head (WAF 8).
¾
CAUTION
Risk of injury if the nger guard is not in place.
¾
NOTE
Possible damage to the RollerDrive caused by the self-tapping screw.
With a roller diameter of > 60 mm, the self-tapping screw can block the RollerDrive.
¾ Note the length of the self-tapping screw in the case of larger roller diameters.
¾ Alternatively, use shorter threaded bolts.
