Assembly and installation
5.3 Installation tool (accessory)
CAUTION
Risk of crushing.
¾ During the installation of the RollerDrive or the conveyor rollers, potential hazards can develop. As the
distances between the rollers are dependent on the material to be conveyed, the hazards associated with
this are not discussed in this operating manual.

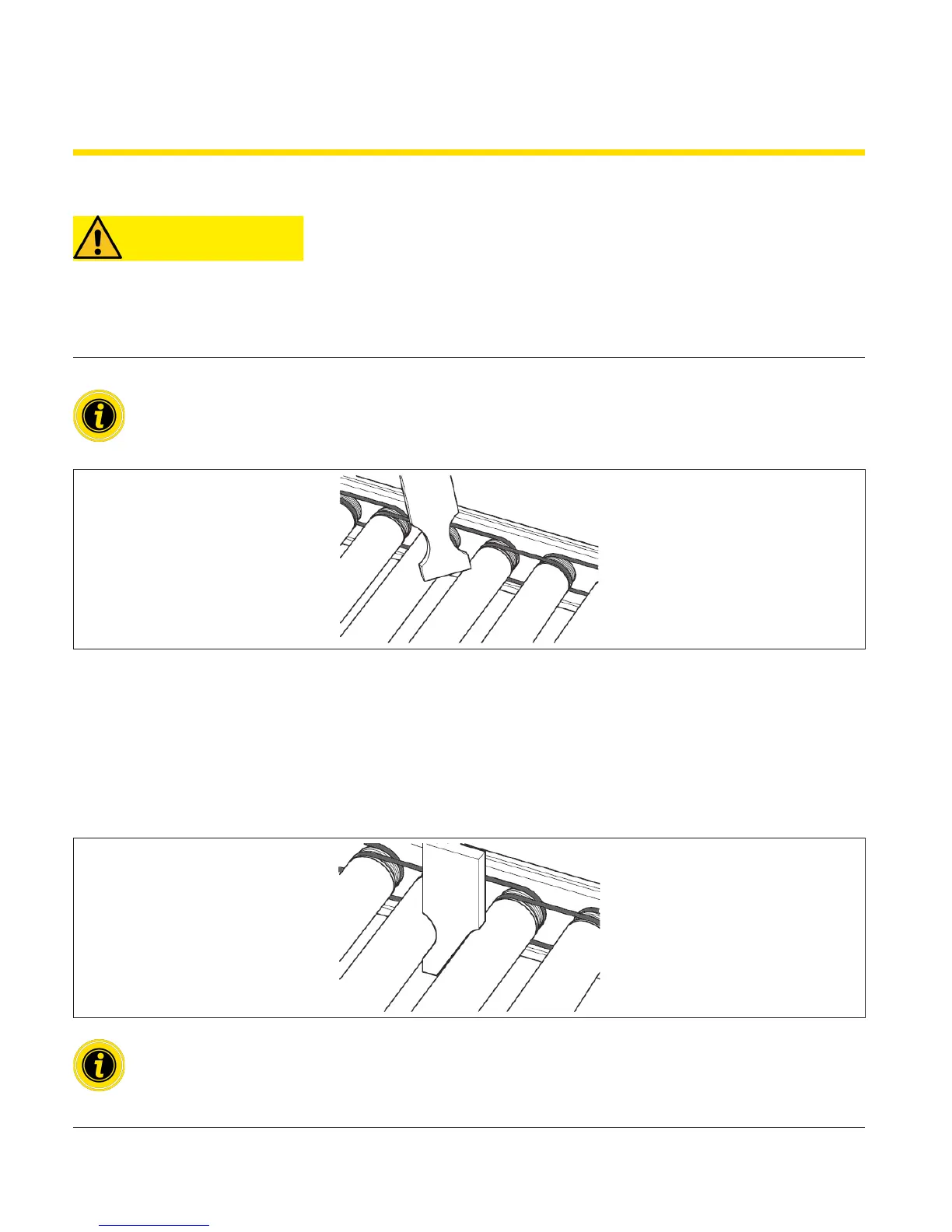

For the installation of the PolyVee belt, we recommend using the PolyVee clamping aid, which is available as
an accessory.
¾
¾ Position the PolyVee clamping aid between the attached roller and the roller/RollerDrive that has not yet been
attached.
¾ Rotate the PolyVee clamping aid by 90° so that the rollers are positioned in the cut-outs intended for them.
¾ The belt is optimally tensioned and a roller/RollerDrive is properly aligned horizontally and vertically. An
The PolyVee clamping aid is intended for the 75 mm and 100 mm roller pitches and designed for rollers
and RollerDrives with a diameter of 50 mm.
