7.2.7 Charging Socket

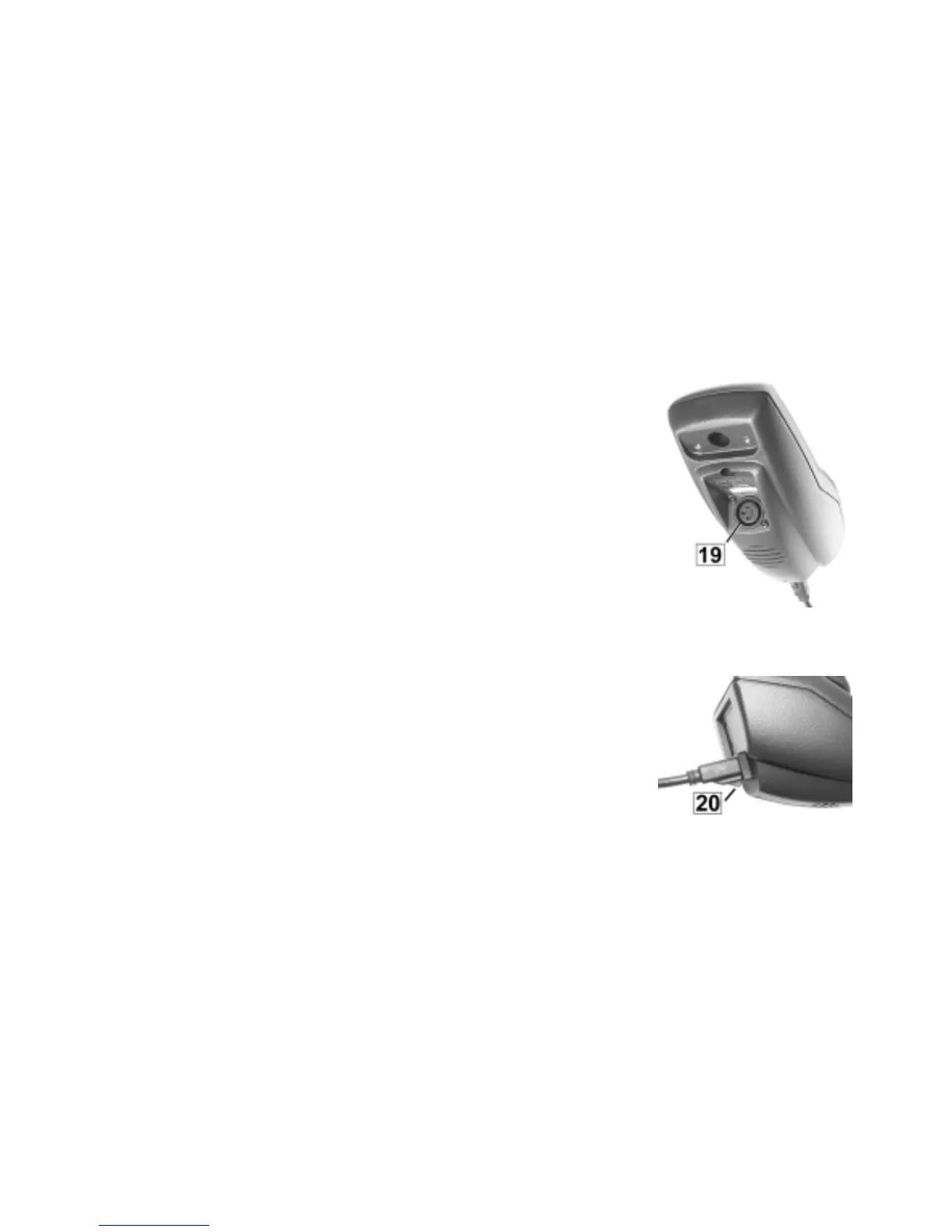

This socket (19) is also located on the bottom of the joystick box and
serves to connect the battery charger.
Charging Socket
7.2.8 Connection Socket for Supply Cable (Bus Cable)
The connection cable serves the power supply of the joystick box
and the data transfer from the joystick box to the main module.
The plug of the connection cable is secured against detachment of
the plug connection by a safety catch (20).
Bus Cable
