9.3 Invacare® Ultimate and Personal Special
Seating Systems
There are two different Invacare® Special Seating Systems, the Personal and
the Ultimate versions. Both systems have ergonomically formed back and seat
elements. In addition, the Ultimate back is equipped with inflatable side and
lumbar cushions.

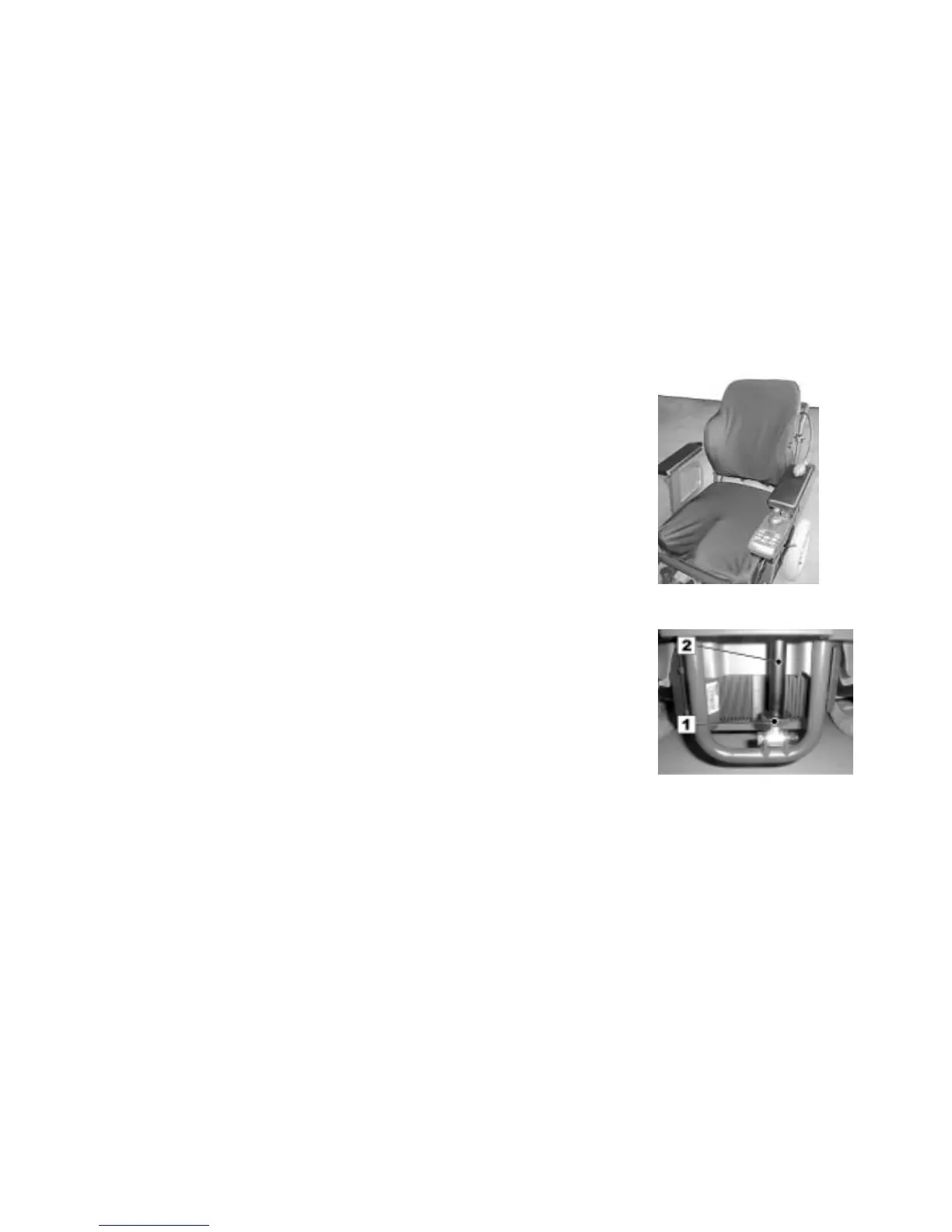

Invacare® Special
Seating System
9.3.1 Adjusting the seat tilt
Manual adjustment:
• Manual adjustment:
• Loosen the knurled nut (1) and screw downwards.
• Turn the threaded adjustment sleeve (2) counterclockwise = lift the front
edge of the seat.
• Turn the threaded adjustment sleeve (2) clockwise = lower the front edge
of the seat.
• Re-tighten the knurled nut (1).
Electric adjustment:
• Adjustment of the seat tilt by means of an electric actuator is described in
the ACS User's Manual.
