INVT EC160 User Manual

User manual of EC160 elevator intelligent integrated machine Complete product description
167

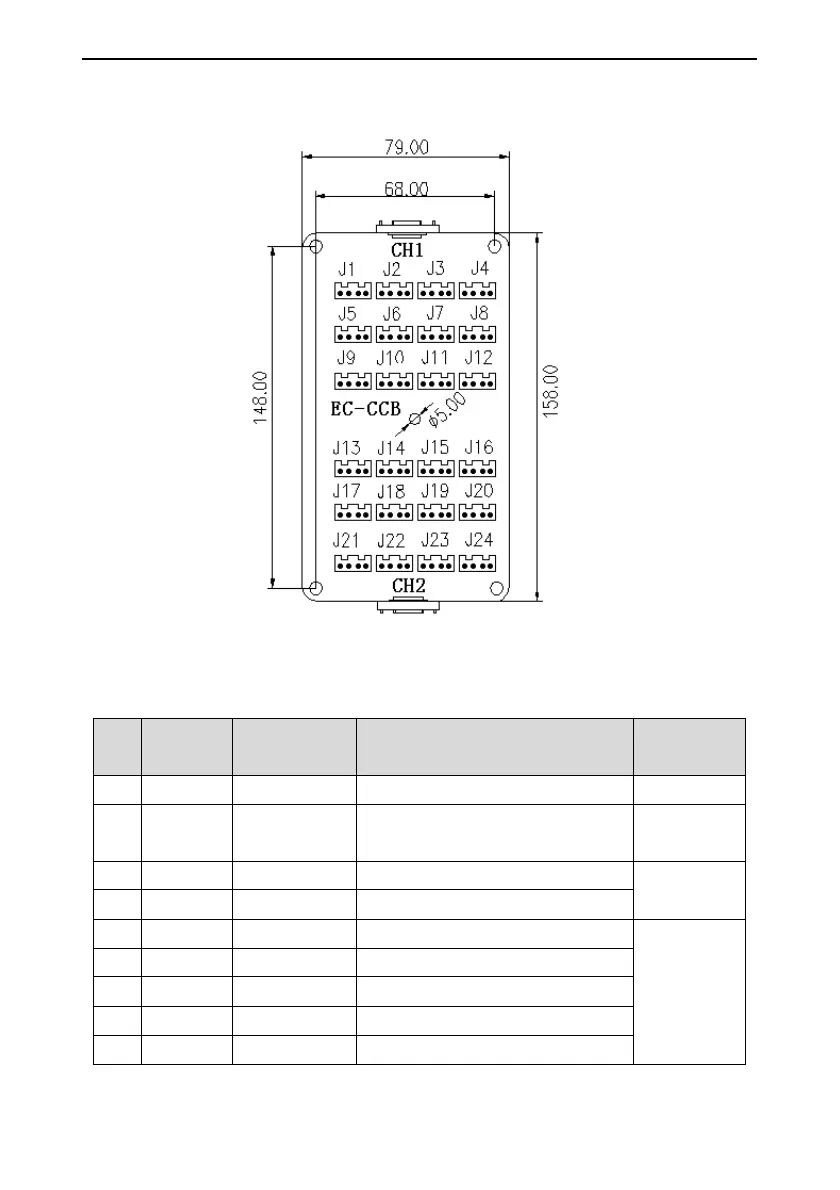

9.2.1 Installation dimension
Figure 9-2 Installation dimension
9.2.2 Interface definition
Serial
No.
Pin Code Terminal definition Remarks
1 CH1 DB9 (male) CH1 connects the car top board
2 CH2 DB9 (female)
CH2 connects the internal command
board
3 J1 V+, K, V+, L- Button input of floor 1 (see Fig9-3)
4 J2 V+, K, V+, L- Button input of floor 2
5 J3 V+, K, V+, L- Button input of floor 3
For
command
board 2, Jn
input signal
corresponds
6 J4 V+, K, V+, L- Button input of floor 4
7 J5 V+, K, V+, L- Button input of floor 5
8 J6 V+, K, V+, L- Button input of floor 6
9 J7 V+, K, V+, L- Button input of floor 7
