Goodrive100-PV series solar pumping inverters Installation guidelines
-10-
Running
environment
condition
The installation site of the inverter should:
keep away from the electromagnetic radiation source;
keep away from contaminative air, such as corrosive gas, oil mist and
flammable gas;
ensure foreign objects, such as metal power, dust, oil, water cannot
enter into the inverter(do not install the inverter on the flammable
materials such as wood);
keep away from direct sunlight, oil mist, steam and vibration
environment.
Below 1000m
If the altitude is above 1000m, please derate 1% for every additional
100m.
The inverter should be installed on an upright position to ensure
sufficient cooling effect.
Note:
Goodrive100-PV series inverters should be installed in a clean and ventilated
environment according to enclosure classification.
Cooling air must be clean, free from corrosive materials and electrically conductive dust.
3.1.2 Installation direction
The inverter may be installed on the wall or in a cabinet.

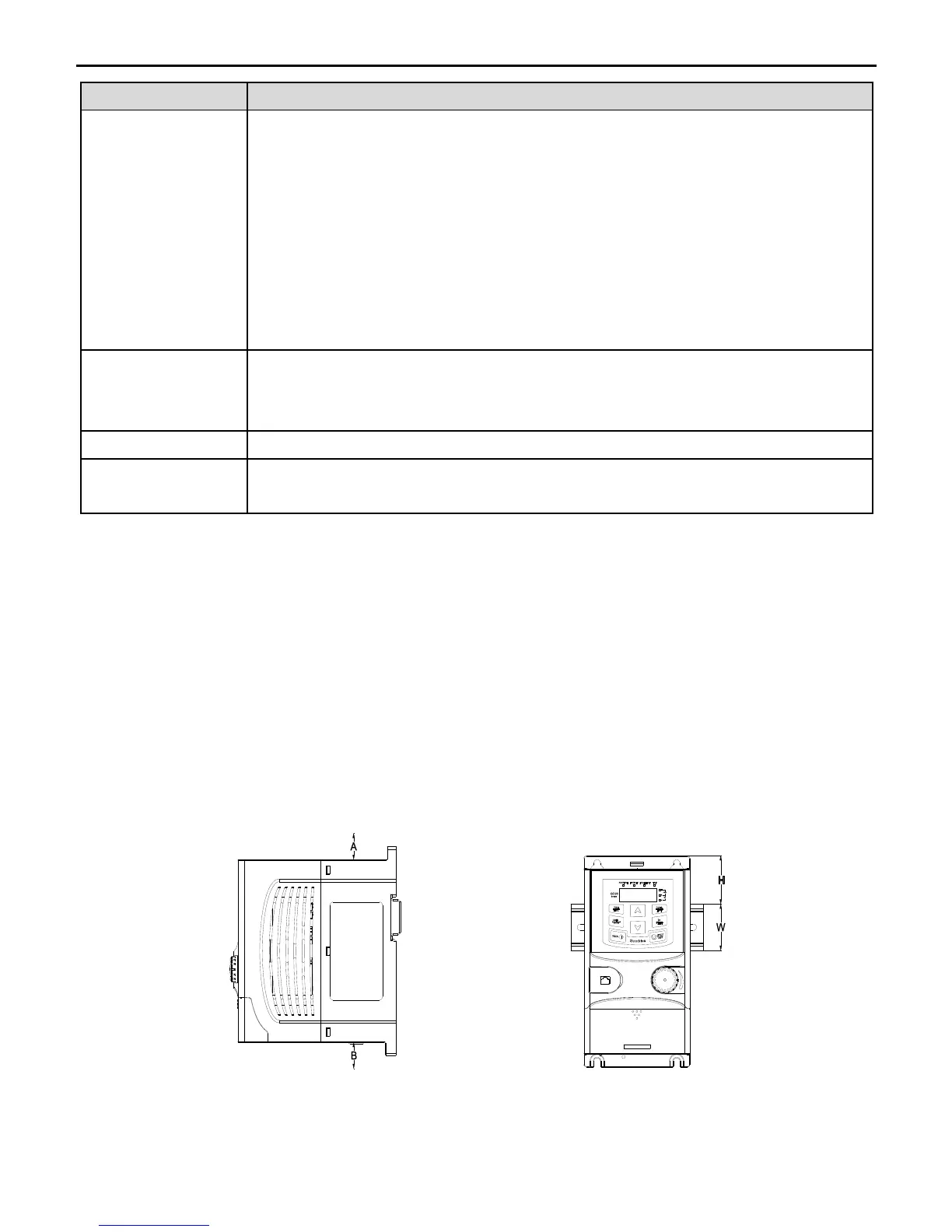

The inverter needs be installed in the vertical position. Check the installation site according to
the requirements below. See Appendix D Dimension drawings for frame details.
3.1.3 Installation manner
(1) The inverters ≤ 2.2kW support wall mounting and rail mounting.
a) Wall mounting b) Rail mounting
Figure 3-1 Installation manners
