Goodrive100-PV series solar pumping inverters Dimension drawings
-79-
Appendix D Dimension drawings

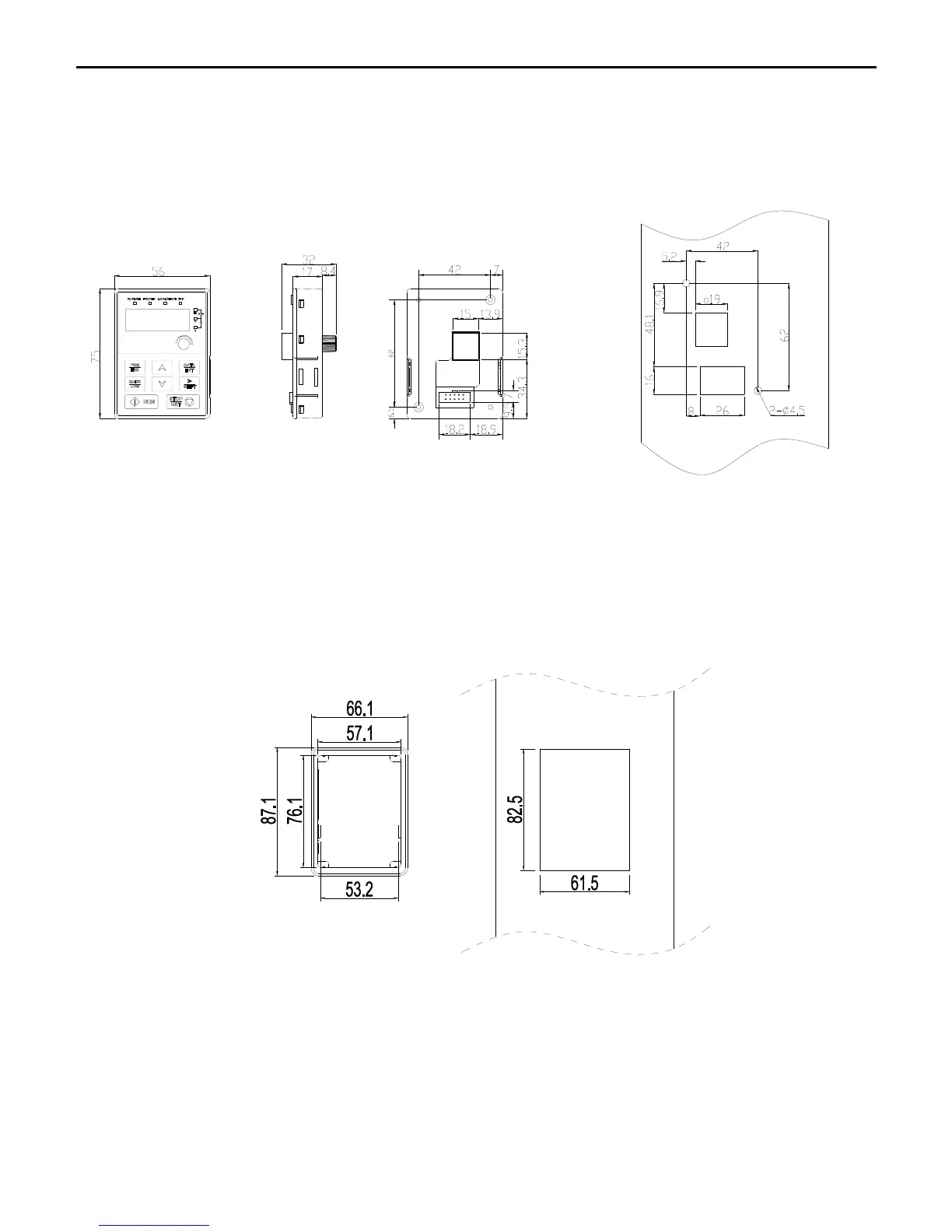

D.1 External keypad structure
Keypad structure
Installation hole
Note: The external keypad is optional for the inverters (380V; ≤2.2kW) and the standard
keypad of inverters (380V; ≥4kW) can be used as the external keypad.
If the keypad is externally installed on an optional bracket, it can be 20 meters away from the
inverter at most.
Installation bracket Installation dimension
