INVT GD100-0R4G-SS2-PV User Manual

Goodrive100-PV series solar pumping inverters Dimension drawings
-82-

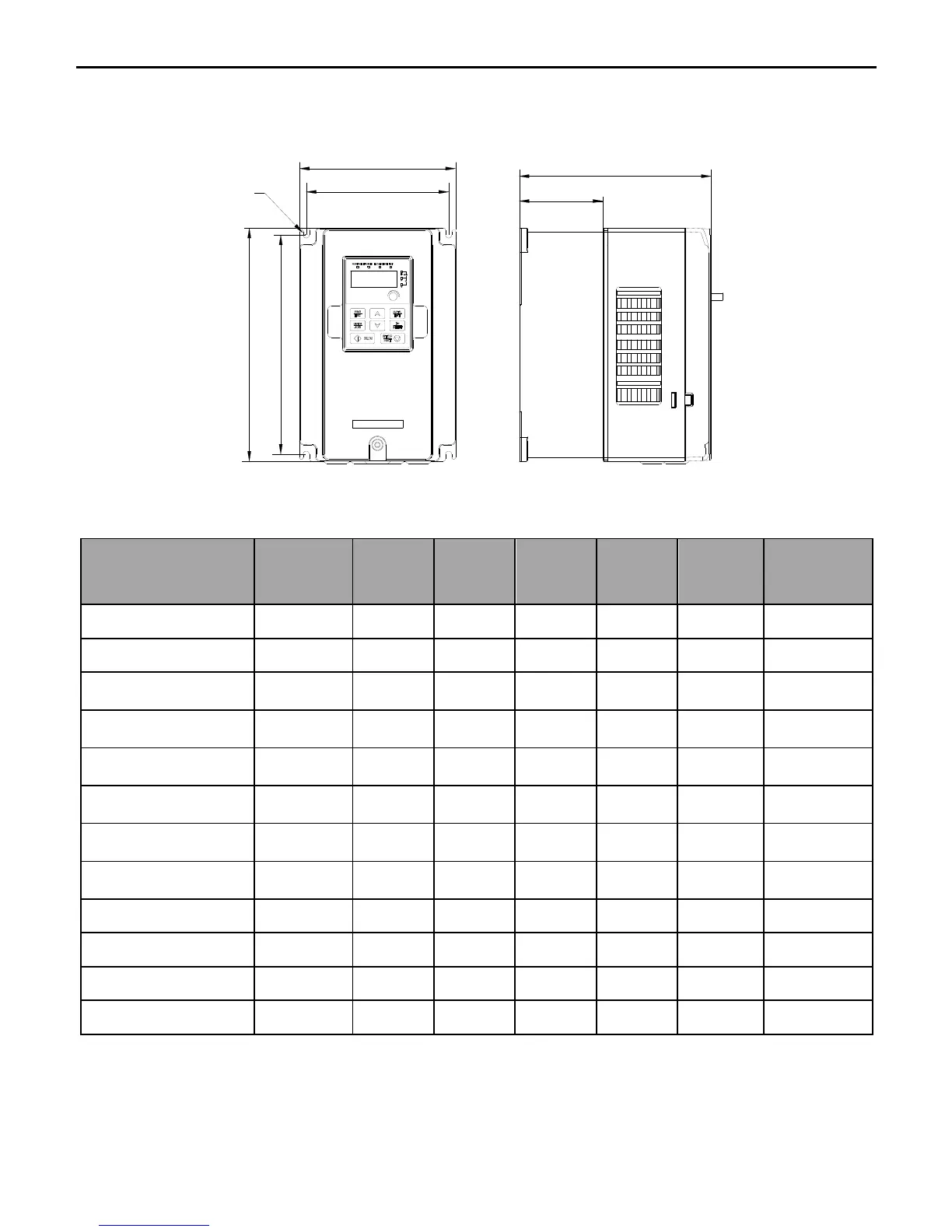

D.3 Dimensions of 4-37kW models
H1
H2
W1
W2
D2
Ø
D1
(a) Wall mounting
Dimensions in wall mounting (unit: mm)
Model
W1
W2
H1
H2
D1
D2
Installation
hole (d)
GD100-004G-4-PV
146.0
131.0
256.0
243.5
167.0
84.5
6
GD100-5R5G-4-PV
146.0
131.0
256.0
243.5
167.0
84.5
6
GD100-7R5G-4-PV
170.0
151.0
320.0
303.5
196.3
113.0
6
GD100-011G-4-PV
170.0
151.0
320.0
303.5
196.3
113.0
6
GD100-015G-4-PV
170.0
151.0
320.0
303.5
196.3
113.0
6
GD100-004G-2-PV
170.0
151.0
320.0
303.5
196.3
113.0
6
GD100-5R5G-2-PV
170.0
151.0
320.0
303.5
196.3
113.0
6
GD100-7R5G-2-PV
170.0
151.0
320.0
303.5
196.3
113.0
6
GD100-018G-4-PV
200.0
185.0
340.6
328.6
184.3
104.5
6
GD100-022G-4-PV
200.0
185.0
340.6
328.6
184.3
104.5
6
GD100-030G-4-PV
250.0
230.0
400.0
380.0
202.0
123.5
6
GD100-037G-4-PV
250.0
230.0
400.0
380.0
202.0
123.5
6
