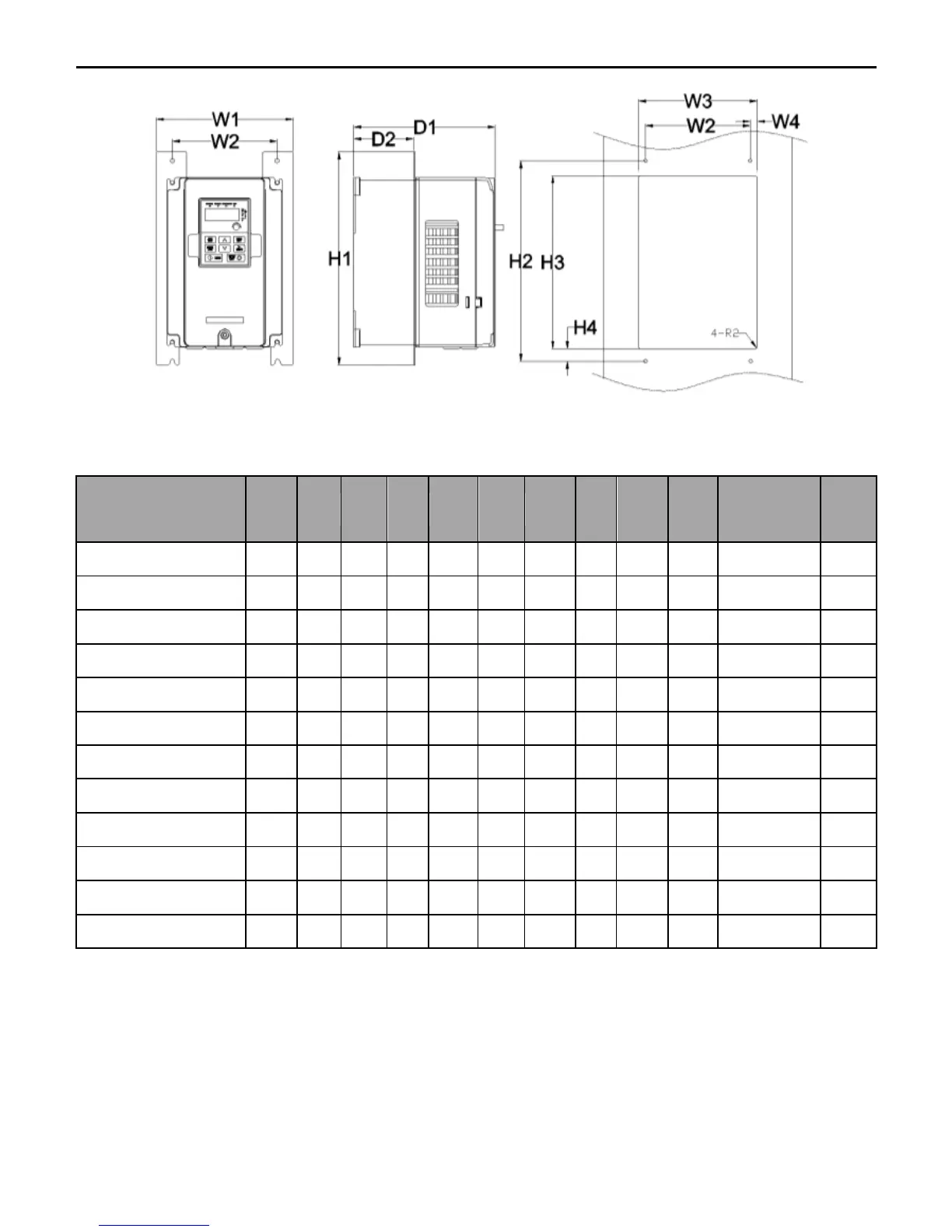

Goodrive100-PV series solar pumping inverters Dimension drawings
-83-
(b) Flange installation
Dimensions in flange installation (unit: mm)
Model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
Nut
specs
GD100-004G-4-PV
170.2
131
150
9.5
292
276
260
6
167
84.5
6
M5
GD100-5R5G-4-PV
170.2
131
150
9.5
292
276
260
6
167
84.5
6
M5
GD100-7R5G-4-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
6
M5
GD100-011G-4-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
6
M5
GD100-015G-4-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
6
M5
GD100-004G-2-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
6
M5
GD100-5R5G-2-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
6
M5
GD100-7R5G-2-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
6
M5
GD100-018G-4-PV
266
250
224
13
371
250
350.6
20.3
184.6
104
6
M5
GD100-022G-4-PV
266
250
224
13
371
250
350.6
20.3
184.6
104
6
M5
GD100-030G-4-PV
316
300
274
13
430
300
410
55
202
118.3
6
M5
GD100-037G-4-PV
316
300
274
13
430
300
410
55
202
118.3
6
M5
Note: In flange installation mode, select flange installation boards.
