Goodrive100-PV series solar pumping inverters Keypad operation procedure
-18-

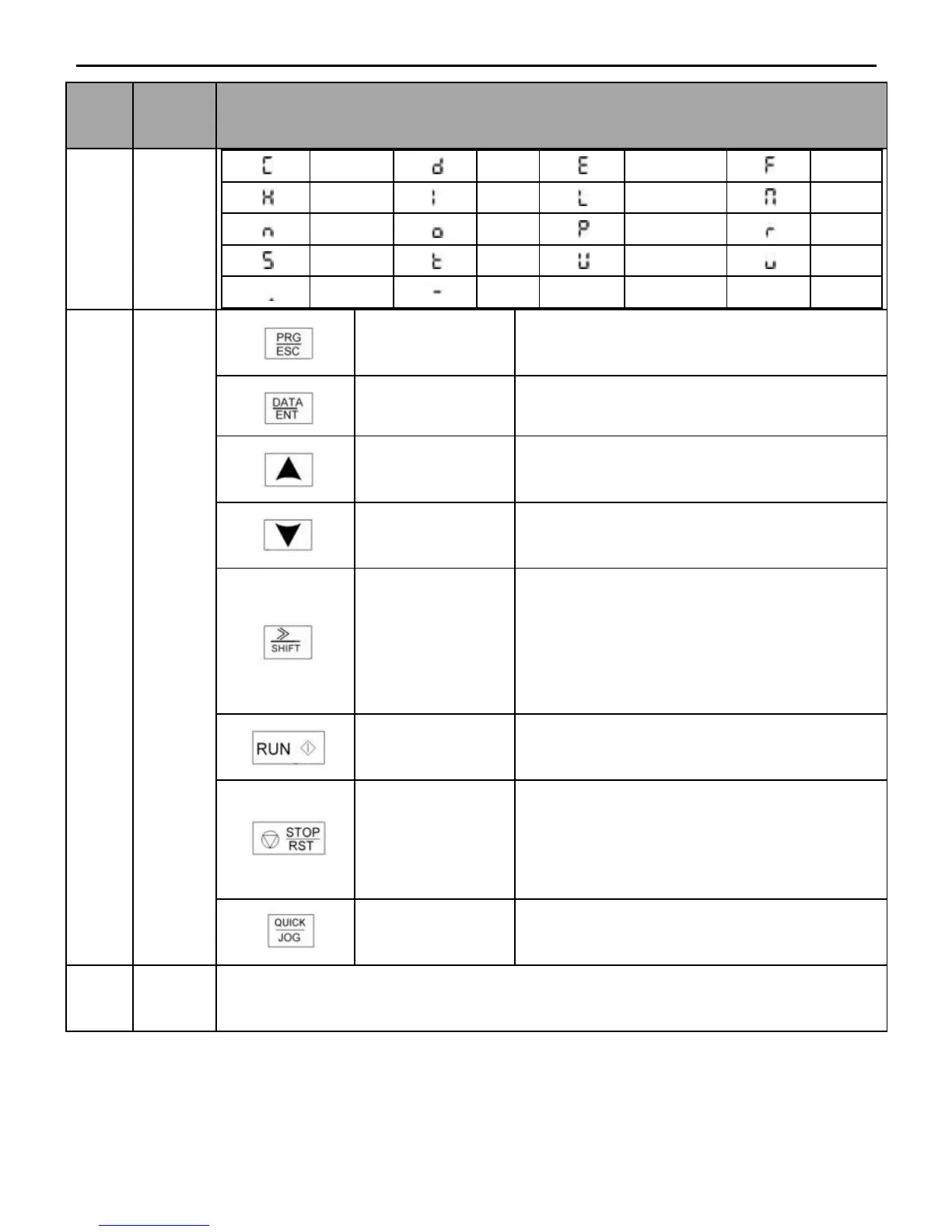

Serial
No.
Name
Description
C
D
E
F
H
I
L
N
n
o
P
r
S
t
U
v
.
-
4
Buttons
Programming key
Enter or escape from the first level menu
and remove the parameter quickly.
Entry key
Enter the menu step-by-step.
Confirm parameters.
UP key
Increase data or function code
progressively.
DOWN key
Decrease data or function code
progressively
Right-shift key
Move right to select the displaying
parameter circularly in stopping and
running mode.
Select the parameter modifying digit during
the parameter modification.
Run key
This key is used to operate on the inverter
in key operation mode.
Stop/
Reset key
This key is used to stop in running state
and it is limited by function code P07.04.
This key is used to reset all control modes
in the fault alarm state.
Quick key
The function of this key is confirmed by
function code P07.02.
5
Keypad
port
External keypad port. When keypads are valid, both the local and external
keypad LEDs are on.
4.2 Keypad displaying
The keypad displaying state of GD100-PV series inverters is divided into stopping state
parameter, running state parameter, function code parameter editing state and fault alarm
state and so on.
