INVT GD100-0R4G-SS2-PV User Manual

Goodrive100-PV series solar pumping inverters Dimension drawings
-80-

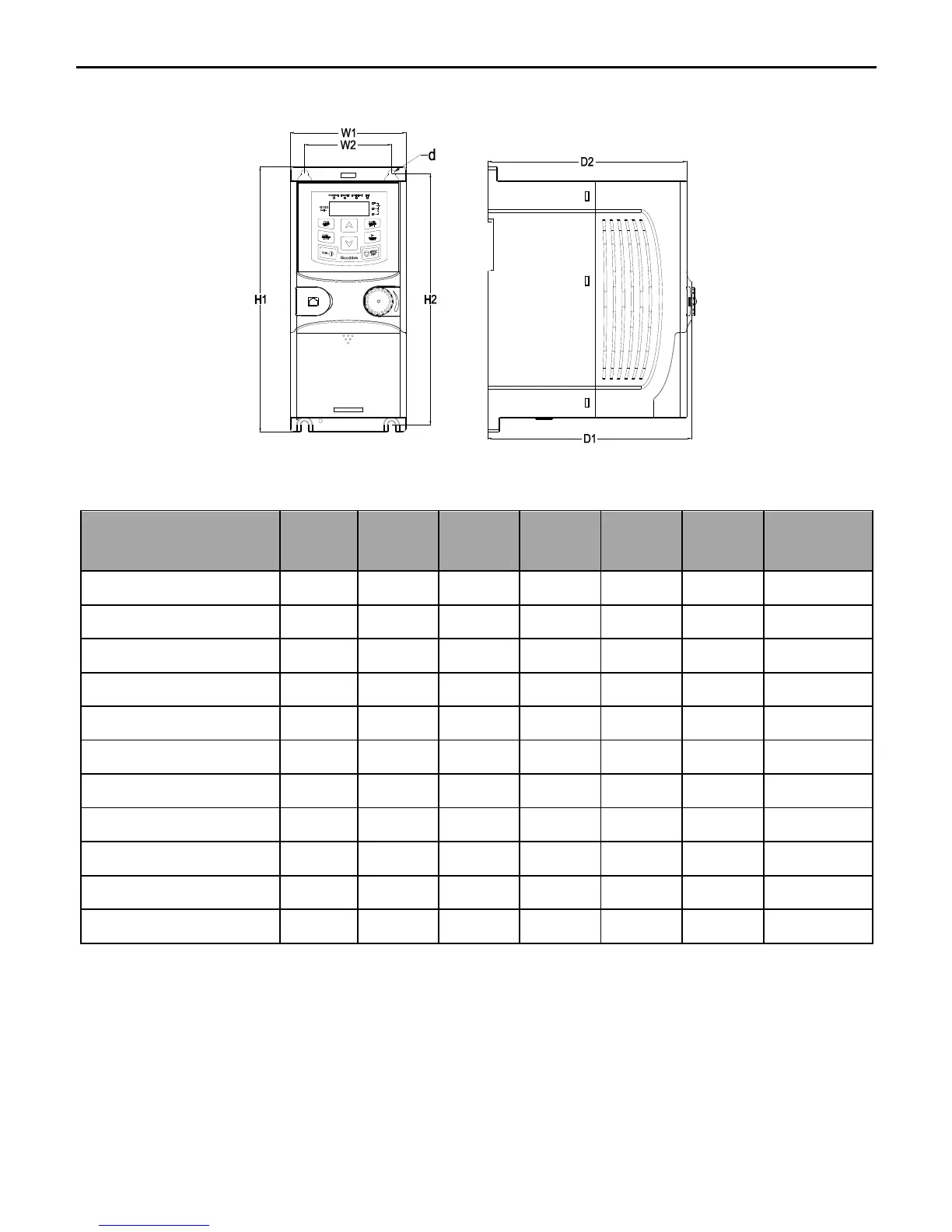

D.2 Dimensions of 0.4-2.2kW models
(a) Wall mounting
Dimensions in wall mounting (unit: mm)
Model
W1
W2
H1
H2
D1
D2
Installation
hole (d)
GD100-0R4G-S2-PV
80.0
60.0
160.0
150.0
123.5
120.3
5
GD100-0R7G-S2-PV
80.0
60.0
160.0
150.0
123.5
120.3
5
GD100-0R4G-SS2-PV
80.0
60.0
160.0
150.0
123.5
120.3
5
GD100-1R5G-S2-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
GD100-2R2G-S2-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
GD100-0R7G-SS2-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
GD100-1R5G-SS2-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
GD100-2R2G-SS2-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
GD100-0R7G-4-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
GD100-1R5G-4-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
GD100-2R2G-4-PV
80.0
60.0
185.0
175.0
140.5
137.3
5
