Goodrive100-PV series solar pumping inverters Dimension drawings
-81-

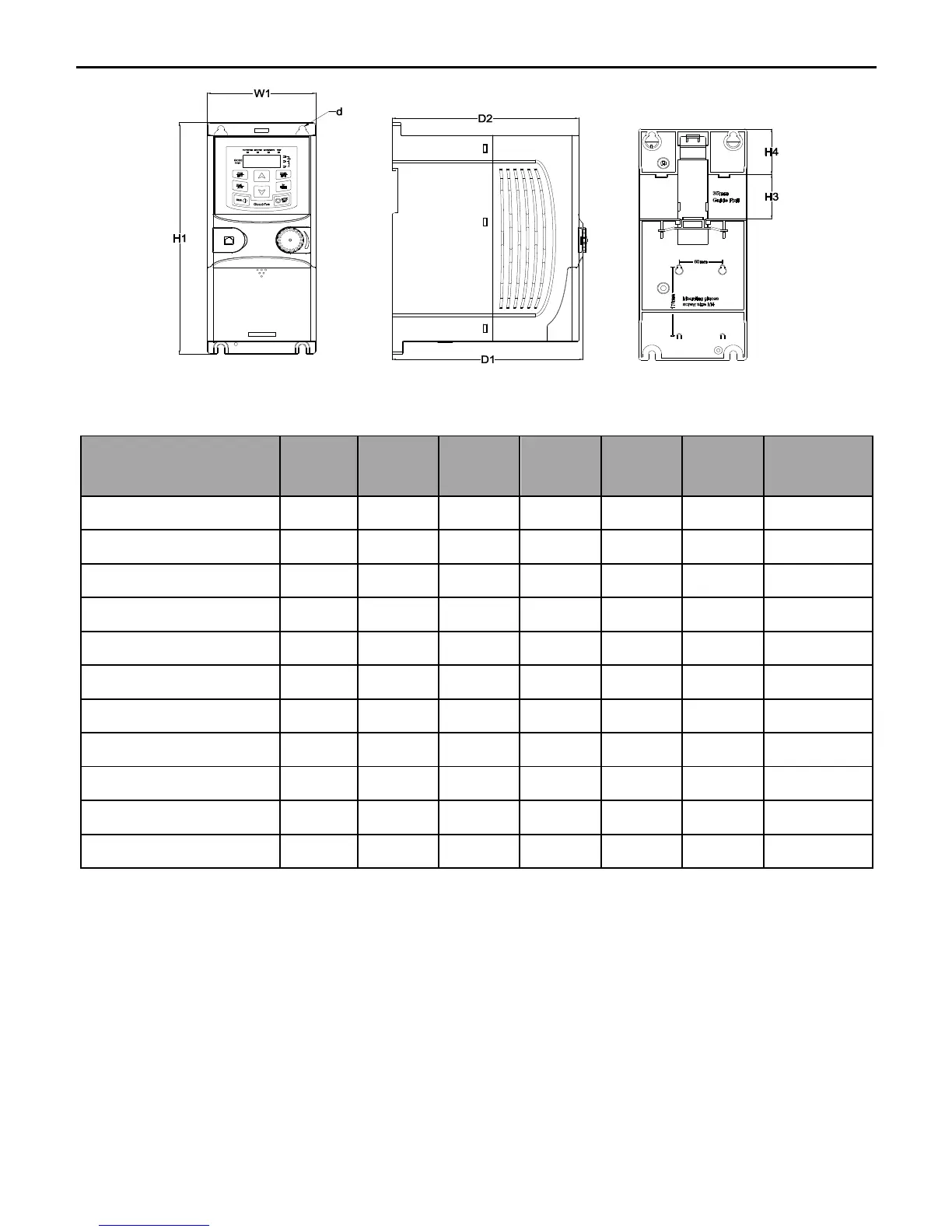

(b) Rail mounting
Dimensions in rail mounting (unit: mm)
Model
W1
H1
H3
H4
D1
D2
Installation
hole (d)
GD100-0R4G-S2-PV
80.0
160.0
35.4
36.6
123.5
120.3
5
GD100-0R7G-S2-PV
80.0
160.0
35.4
36.6
123.5
120.3
5
GD100-0R4G-SS2-PV
80.0
160.0
35.4
36.6
123.5
120.3
5
GD100-1R5G-S2-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
GD100-2R2G-S2-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
GD100-0R7G-SS2-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
GD100-1R5G-SS2-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
GD100-2R2G-SS2-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
GD100-0R7G-4-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
GD100-1R5G-4-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
GD100-2R2G-4-PV
80.0
185.0
35.4
36.6
140.5
137.3
5
