INVT GD100-0R4G-SS2-PV User Manual

Goodrive100-PV series solar pumping inverters Inverter mains & PV switching solution
-76-
C.2 IP54 protection-level inverters
INVT provides IP54 protection-level inverters, which are divided into two types: One type
implements auto mains & PV switching and the other type does not implement auto switching.
The figure below shows the inverter dimensions.

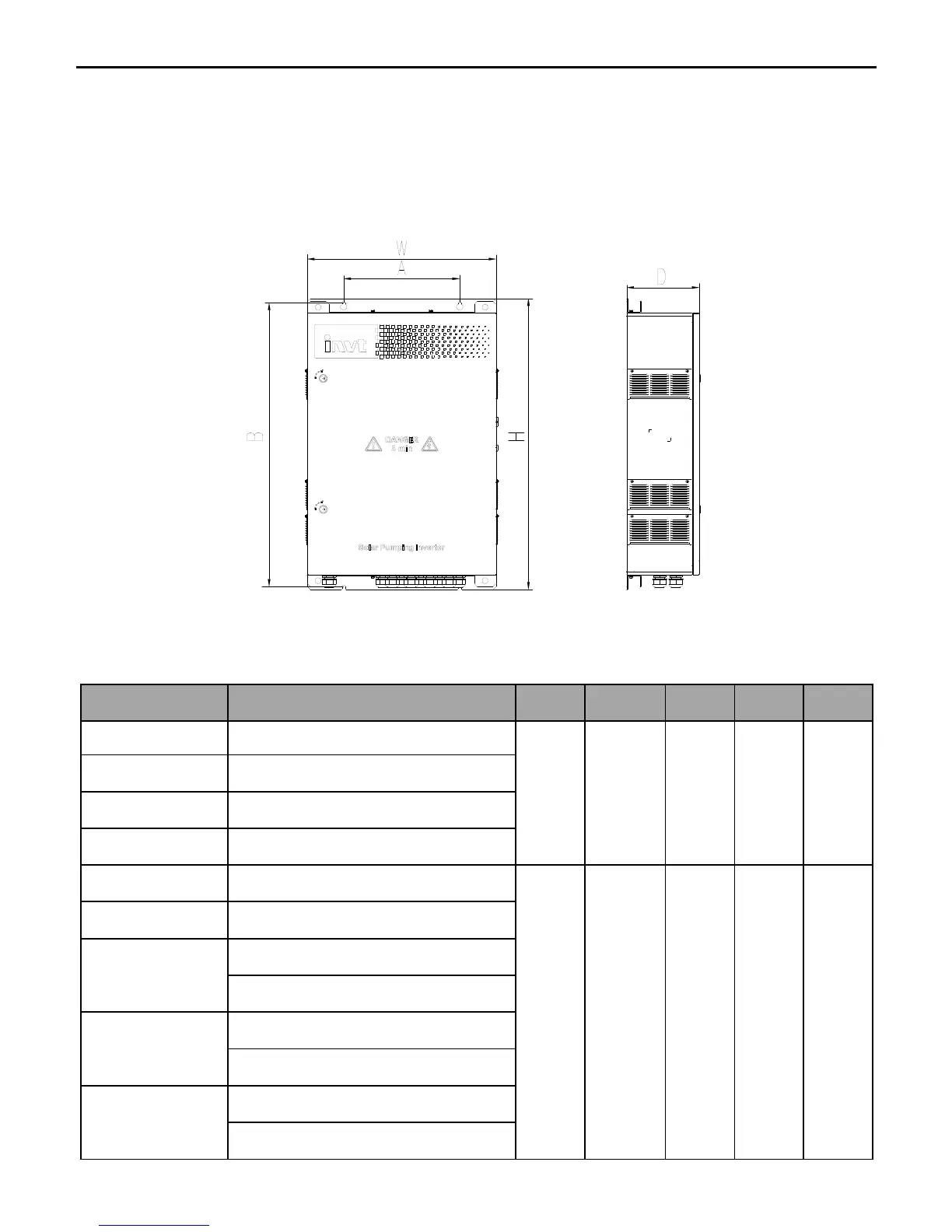

Figure C-2 IP54 inverter dimensional drawing
IP54 inverter dimensions (unit: mm)
Power (kW)
Model
W
H
D
A
B
37
GD100-037G-45-PV-AS
650
1000
250
400
975
30
GD100-030G-45-PV-AS
22
GD100-022G-45-PV-AS
18.5
GD100-018G-45-PV-AS
15
GD100-015G-45-PV-AS
550
900
225
400
875
11
GD100-011G-45-PV-AS
7.5
GD100-7R5G-45-PV-AS
GD100-7R5G-25-PV-AS
5.5
GD100-5R5G-45-PV-AS
GD100-5R5G-25-PV-AS
4
GD100-004G-45-PV-AS
GD100-004G-25-PV-AS
