INVT GD100-0R4G-SS2-PV User Manual

Goodrive100-PV series solar pumping inverters Inverter mains & PV switching solution
-77-

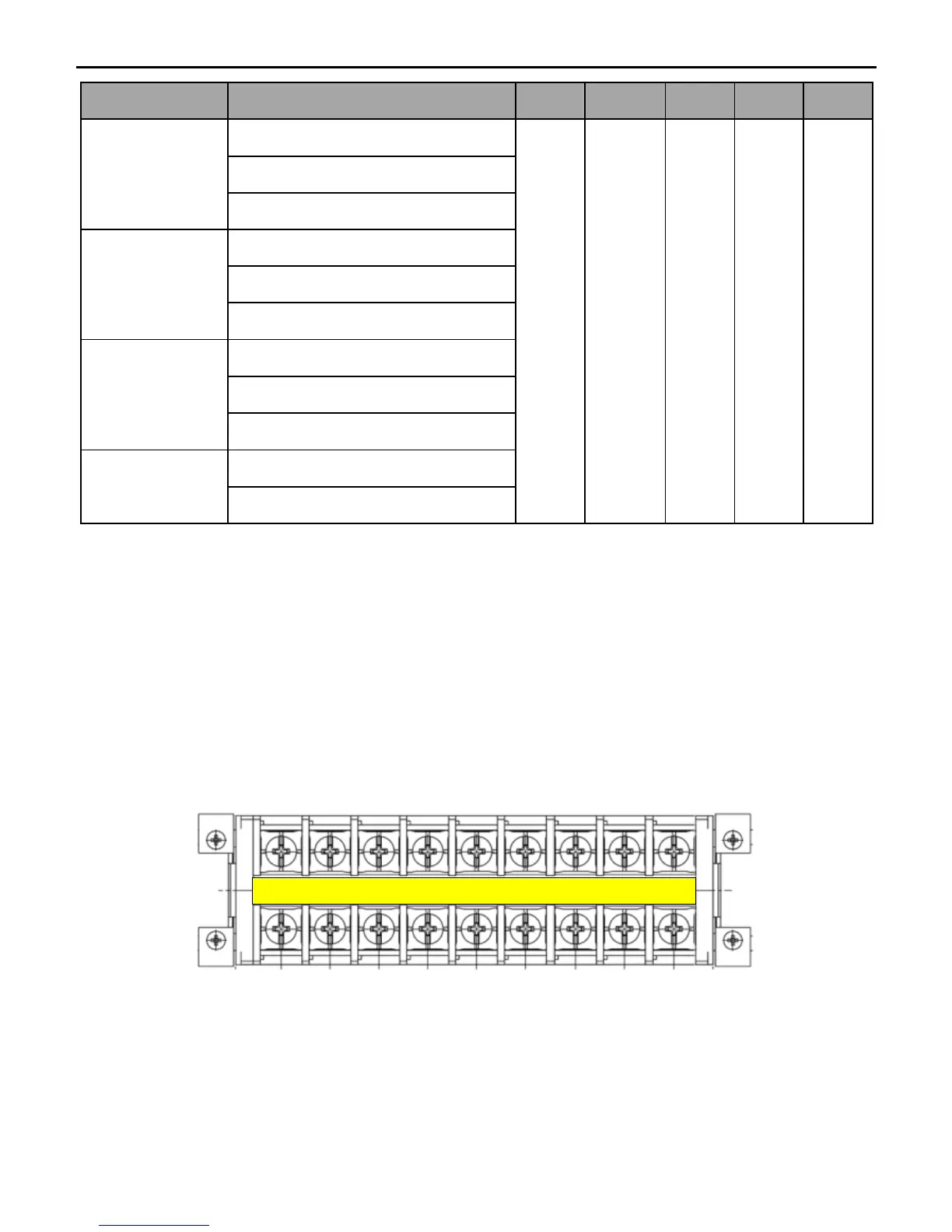

Power (kW)
Model
W
H
D
A
B
2.2
GD100-2R2G-45-PV-AS
550
700
200
400
675
GD100-2R2G-S25-PV-AS
GD100-2R2G-SS25-PV-AS
1.5
GD100-1R5G-45-PV-AS
GD100-1R5G-S25-PV-AS
GD100-1R5G-SS25-PV-AS
0.75
GD100-0R7G-45-PV-AS
GD100-0R7G-S25-PV-AS
GD100-0R7G-SS25-PV-AS
0.4
GD100-0R4G-S25-PV-AS
GD100-0R4G-SS25-PV-AS
Note:
1. The inverters that do not implement auto switching do not have the suffix -AS.
2. The inverters ≤ 2.2kW are equipped with the boost module, supporting auto switching.
3. For -S25 and -SS25 models with the boost module, the DC input voltage cannot be
greater than 440V. For -45 models with the boost module, the DC input voltage cannot be
greater than 600V.
C.3 Wiring terminals
The following figures show the wiring terminals of different models for IP54 inverters.
+ - R S T N U V W
Figure C-3 Wiring terminals of 4-37kW models
