Goodrive100-PV series solar pumping inverters Installation guidelines
-11-
Note: The minimum space of A and B is 100mm. H is 36.6mm and W is 35.0mm.
(2) The inverters ≥ 4kW support wall mounting and flange mounting.

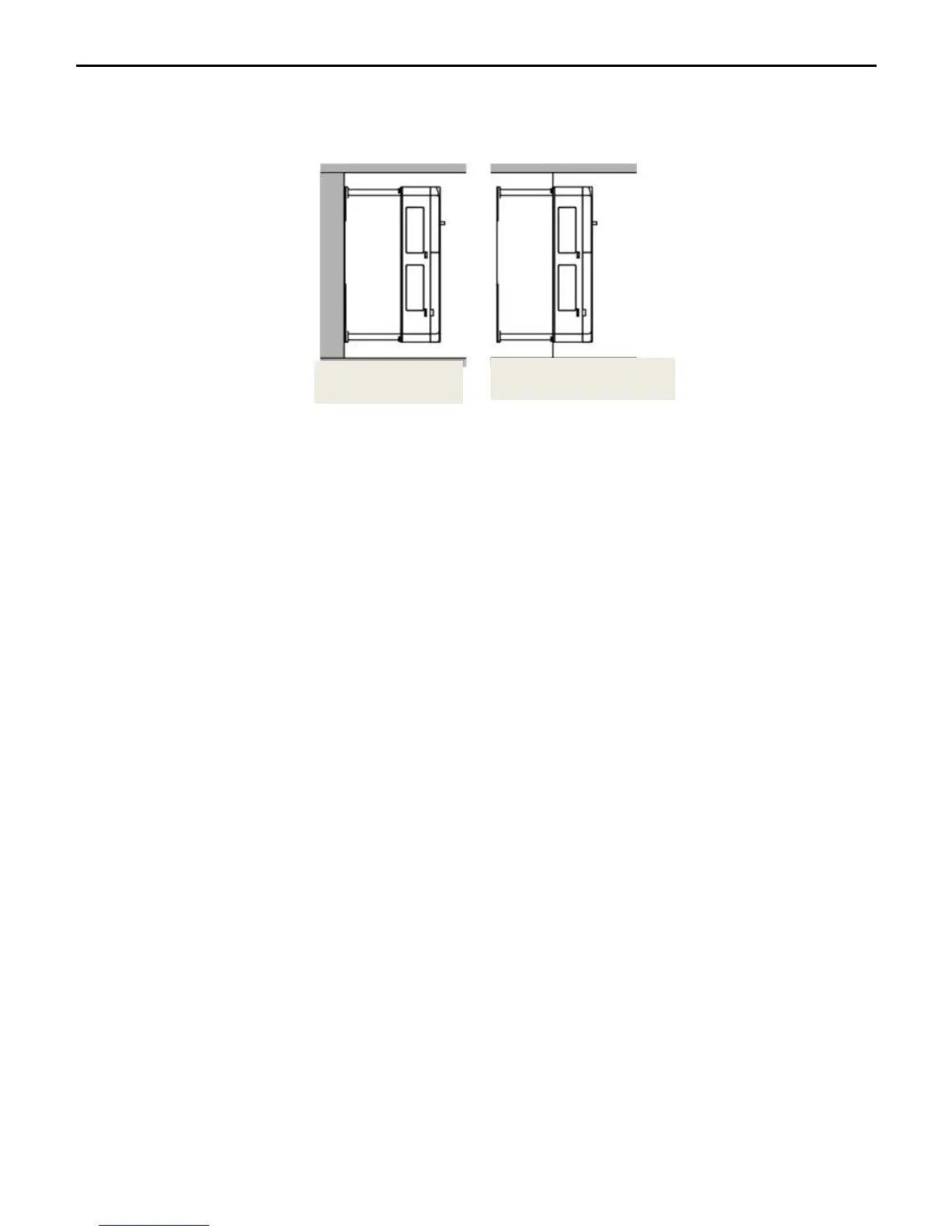

Figure 3-2 installation manners
1) Mark the locations of installation holes. For details about the holes, see the inverter
dimension diagram in the appendix.
2) Fix the screws or bolts into the marked locations.
3) Lean the inverter against the wall.
4) Fasten the tightening screws on the wall.
3.2 Standard wiring
3.2.1 Terminals of main circuit
The figure below shows the standard wiring of inverter.
