Goodrive100-PV series solar pumping inverters Installation guidelines
-12-
Well
S2
S3
COM
GD100-PV
inverter
High water level switch
Low water level
switch
Common
terminal
Water
tower
S1
S4
COM
Forced switch to
mains
Single/two phase
algorithm shifting
Common
terminal
(+) (-)
Q1
PV input
U V W
Water
pump

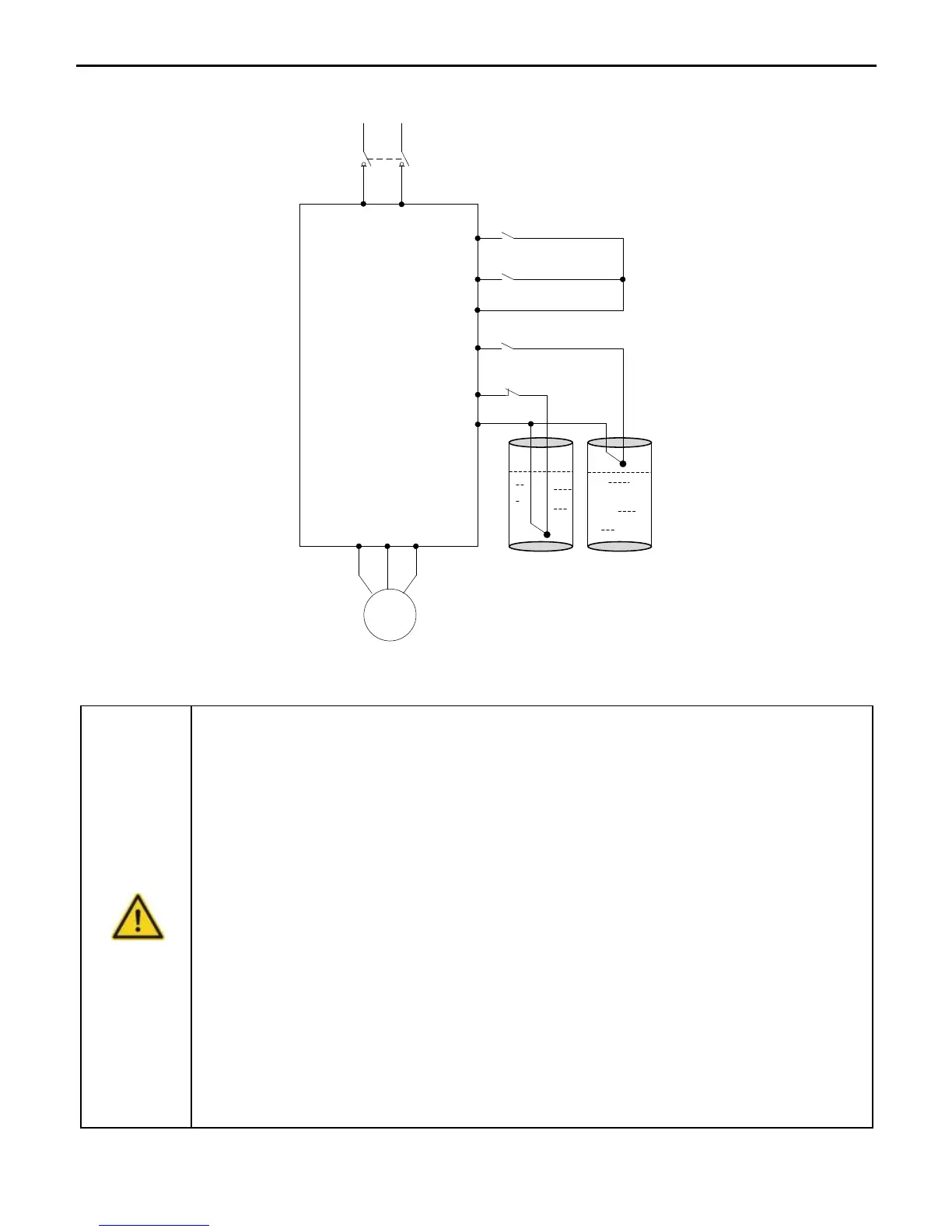

Figure 3-3 Standard wiring diagram
The DC breaker Q1 must be installed as the protection switch for PV input.
In parallel connection, the combination box special for PV must be used.
When the distance between the PV input component and inverter exceeds
10 meters, type-II surge protection devices must be configured at the DC
side.
When the distance between the pump and inverter exceeds 50 meters, it is
recommended to configure output reactors. See appendix A.4 for the
output reactor model selection.
The inverter automatically runs after being powered on. If parameters need
to be set, follow the parameter setting instructions in chapter 5.
Before connecting the braking resistor cable, remove the yellow labels of
PB, (+), and (-) from the terminal blocks. Otherwise, poor connection may
occur.
