Goodrive100-PV series solar pumping inverters Inverter mains & PV switching solution
-74-
Key
Sign
Description
Remarks
Rated
current
②
Inverter power
055A: applies to inverters ≤15kW
110A: applies to inverters 18.5~37kW
Voltage
degree
②
Voltage degree
4: AC 3PH 380V(-15%)~440(+10%)
2: AC 3PH 220V(-15%)~240(+10%)
Industrial
code
④
Industrial code
PV stands for solar pumping.
C.1.1.2 Terminals of QH100-PV switching module
Terminal
Name
Function
PV +
PV input
Connects to the voltage detection board input and
diode module positive pole.
PV –
PV input
Connects to the voltage detection board input.
(+)
Switching module
output
Connects to the diode module negative pole.
S, COM
Voltage detection
signal
Switching on/off signal, corresponding to PV voltage
higher/lower than the threshold.
Connects to inverter terminals HDI and COM.
C.1.1.3 Installation dimensions

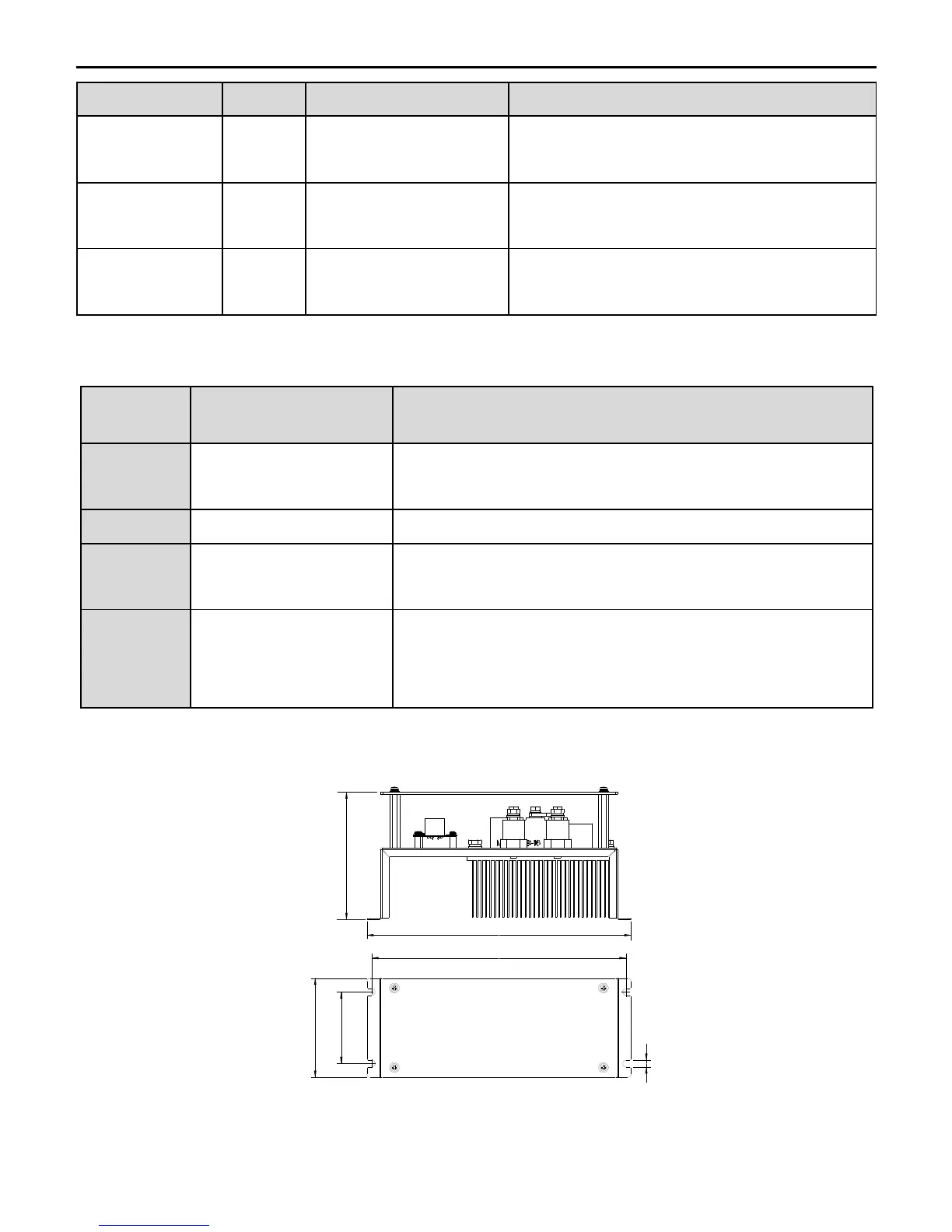

Figure C-2 Switching module installation dimensions (unit: mm)
Note: To ensure the secure running, add external ventilation and heat dissipation measures.
1 1 5 . 7
90
65
2 40
2 3 1
6
