Goodrive200A inverters Function parameters
56
Function
code
Name Detailed instruction of parameters
Default
value
Modify
P05.38
Correspondin
g setting of
the lower
limit of AI2
Input filter time: this parameter is used to adjust
the sensitivity of the analog input. Increasing the
value properly can enhance the anti-interference
of the analog, but weaken the sensitivity of the
analog input

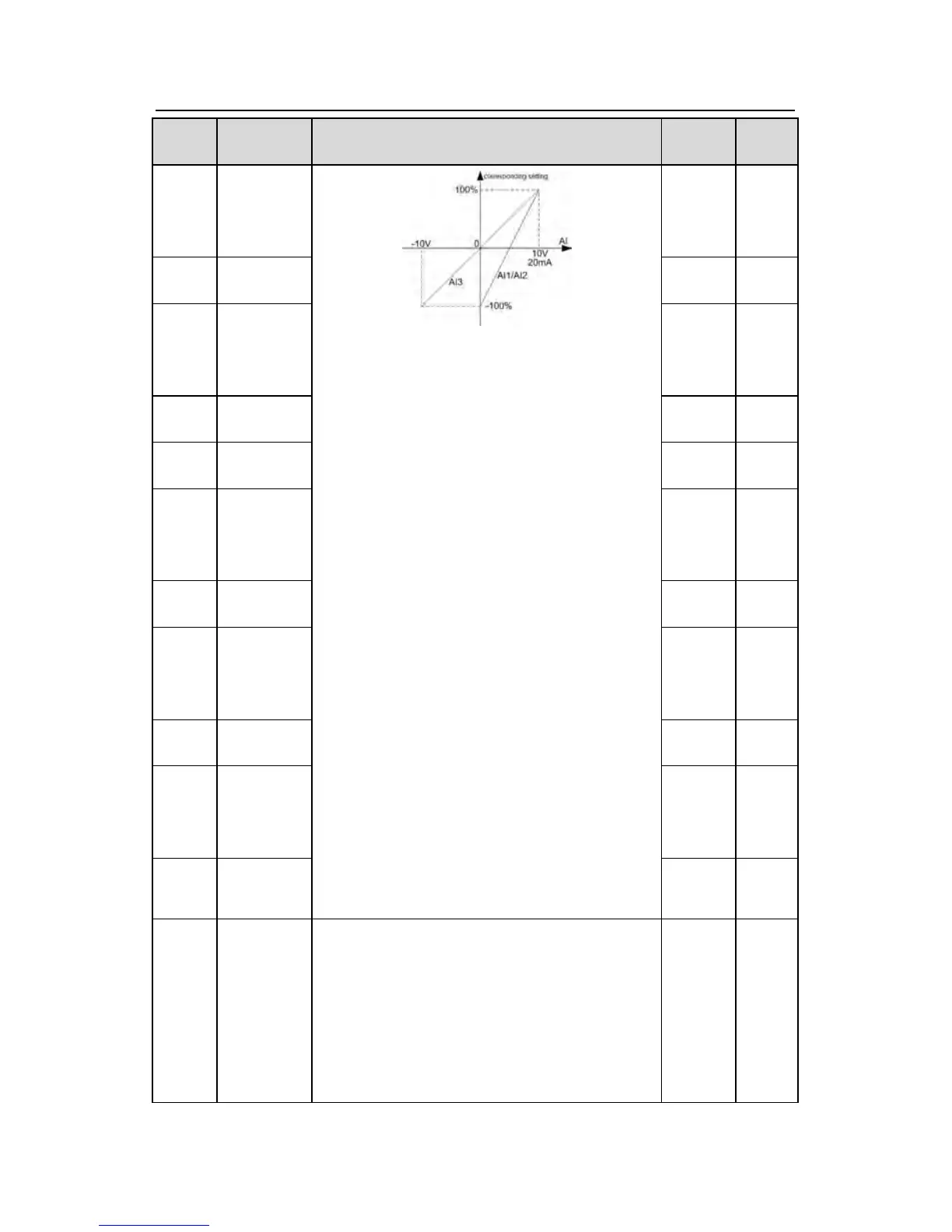

Note: Analog AI1 and AI2 can support 0~10V or
0~20mA input, when AI1 and AI2 selects 0~20mA
input, the corresponding voltage of 20mA is 5V.
AI3 can support the output of -10V~+10V.
The setting range of P05.32:0.00V~P05.34
The setting range of P05.33:-100.0%~100.0%
The setting range of P05.34:P05.32~10.00V
The setting range of P05.35:-100.0%~100.0%
The setting range of P05.36:0.000s~10.000s
The setting range of P05.37:0.00V~P05.39
The setting range of P05.38:-100.0%~100.0%
The setting range of P05.39:P05.37~10.00V
The setting range of P05.40:-100.0%~100.0%
The setting range of P05.41:0.000s~10.000s
The setting range of P05.42:-10.00V~P05.44
The setting range of P05.43:-100.0%~100.0%
The setting range of P05.44: P05.42~P05.46
The setting range of P05.45:-100.0%~100.0%
The setting range of P05.46:P05.44~10.00V
The setting range of P05.47:-100.0%~100.0%
The setting range of P05.48:0.000s~10.000s
0.0% ○
P05.39
Upper limit of
AI2
10.00V
○
P05.40
Correspondin
g setting of
the upper
limit of AI2
100.0%
○
P05.41
AI2 input
filter time
0.100s
○
P05.42
L
ower limit of
AI3
-10.00V
○
P05.43
Correspondin
g setting of
the lower
limit of AI3
-100.0%
○
P05.44
Middle value
of AI3
0.00V
○
P05.45
Correspondin
g middle
setting of
AI3
0.0% ○
P05.46
Upper limit of
AI3
10.00V
○
P05.47
Correspondin
g setting of
the upper
limit of AI3
100.0%
○
P05.48
AI3 input
filter time
0.100s
○
P05.49
HDI
high-speed
pulse input
The function selection when HDI terminals is
high-speed pulse input
0:Frequency setting input, frequency setting
source
1:Counter input, high-speed pulse counter input
terminals
2:Length counting input, length counter input
terminals
0 ◎
