INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Optional peripheral accessories
-149-

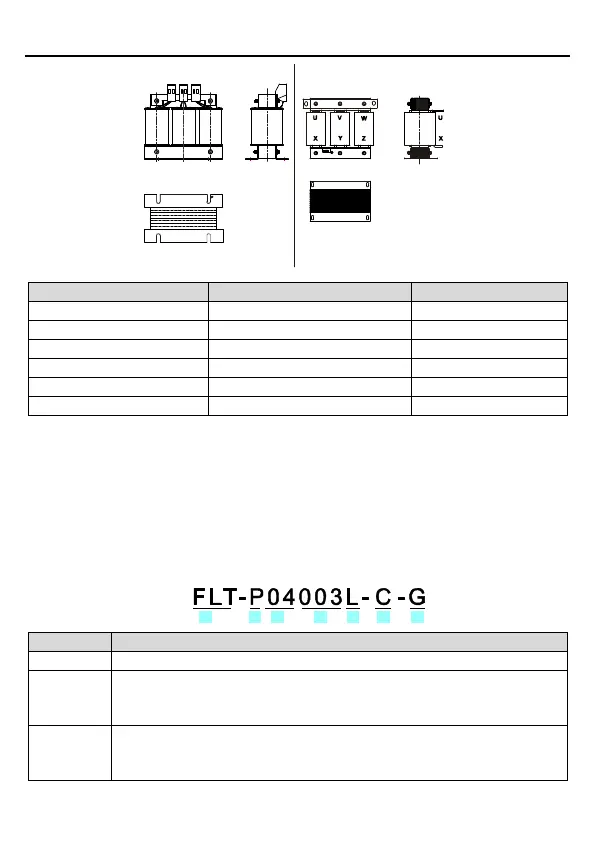

Input reactor Output reactor
VFD model
Input reactor
Output reactor
GD18-0R7-4-2
ACL2-1R5-4
OCL2-1R5-4
GD18-1R5-4-2
ACL2-004-4
OCL2-1R5-4
GD18-2R2-4-2
ACL2-004-4
OCL2-2R2-4
GD18-004-4-2
ACL2-7R5-4
OCL2-004-4
GD18-5R5-4-2
ACL2-011-4
OCL2-5R5-4
GD18-7R5-4-2
ACL2-015-4
OCL2-7R5-4
Note:
 The rated input voltage drop of input reactors is 2%±15%.
 The rated output voltage drop of output reactors is 1%±15%.
 The preceding table lists external accessories. You need to specify the ones you choose
when purchasing accessories.
C.6 Filters
C.6.1 C3 filter model
BA C D E F
G
Field
Description
A
FLT: VFD filter series
B
Filter type
P: power supply filter
L: output filter
C
Voltage class
S2: AC 1PH 220V(-15%)–240V(+10%)
04: AC 3PH 380V(-15%)–440V(+10%)
