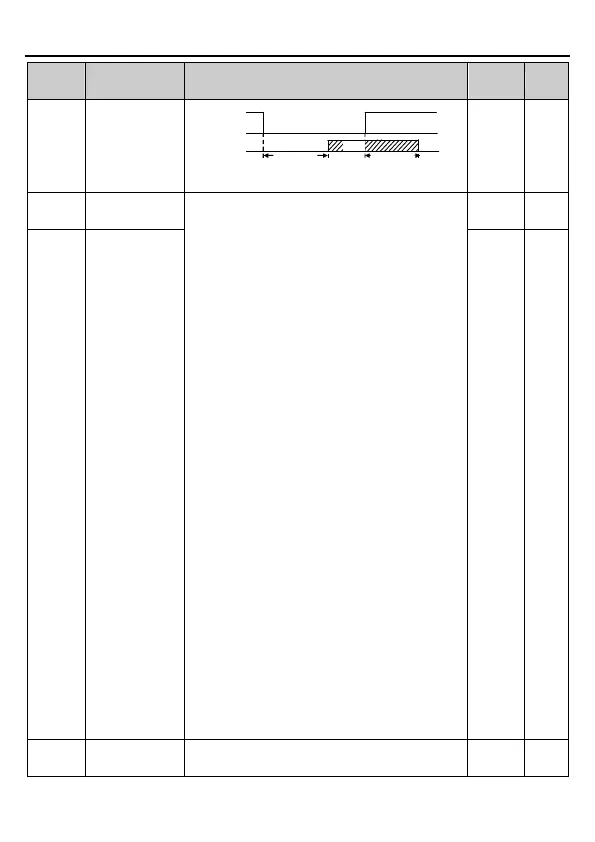

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-62-
Function
code
Name
Description
Default
value
Modify
P06.13
RO2 switching
off delay time
RO electric level
RO valid Invalid
Switch on
delay
invalid
Valid
Switch off
delay
Setting range: 0.00050.000s
0.000s
P06.14
AO1 output
selection
Note: By default, AO1 is assigned to #1 inverter
unit, and AO2 is assigned to #2 inverter unit. If
you want to change the configuration, see
section 5.2 for details.
0: Running frequency
1: Set frequency
2: Ramp reference frequency
3: Running rotation speed
4: Output current (relative to twice the rated
current of the VFD)
5: Output current (relative to twice the rated
current of the motor)
6: Output voltage
7: Output power
8: Set torque value
9: Output torque
10: Reserved
11: AI2 input
12: AI3 input
13: Reserved
14: Value 1 set through MODBUS
communication
15: Value 2 set through MODBUS
communication
1621: Reserved
22: Torque current (relative to 3 times the rated
current of the motor)
23: Ramp reference frequency (with sign)
24: Invalid
2530: Reserved
0
P06.15
AO2 output
selection
0
P06.17
AO1 output
lower limit
The function codes define the relationship
between the output value and analog output.
0.0%
