INVT Goodrive18 Series User Manual

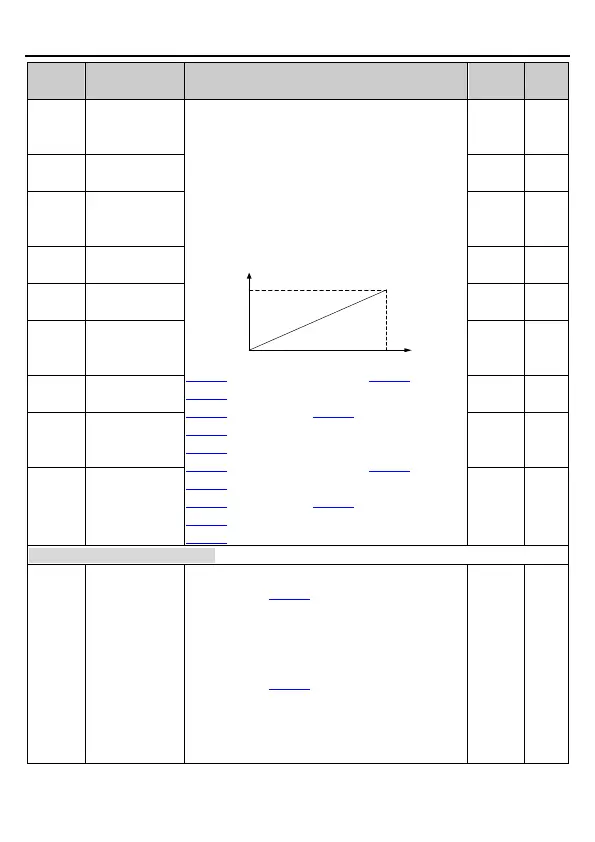

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-63-
Function
code
Name
Description
Default
value
Modify
P06.18
AO1 output
corresponding
to lower limit
When the output value exceeds the range of set
maximum or minimum output, it will count
according to the low-limit or upper-limit output.
When the analog output is current output, 1mA
equals 0.5V.
In different cases, the corresponding analog
output of 100% of the output value is different.
Refer to each application for detailed
information.
10V (20mA)
0.0% 100.0%
AO
P06.17 setting range: -100.0%–P06.19
P06.18 setting range: 0.00V–10.00V
P06.19 setting range: P06.17–100.0%
P06.20 setting range: 0.00V–10.00V
P06.21 setting range: 0.000s–10.000s
P06.22 setting range: -100.0%–P06.24
P06.23 setting range: 0.00V–10.00V
P06.24 setting range: P06.22–100.0%
P06.25 setting range: 0.00V–10.00V
P06.26 setting range: 0.000s–10.000s
0.00V
○
P06.19
AO1 output
upper limit
100.0%
○
P06.20
AO1 output
corresponding
to upper limit
10.00V
○
P06.21
AO1 output filter
time
0.000s
○
P06.22
AO2 output
lower limit
0.0%
○
P06.23
AO2 output
corresponding
to lower limit
0.00V
○
P06.24
AO2 output
upper limit
100.0%
○
P06.25
AO2 output
corresponding
to upper limit
10.00V
○
P06.26
AO2 output filter
time
0.000s
○
P07 Human-machine interface
P07.00
User password
0–65535
When you set P07.00 set to a non-zero value,
the password protection mechanism is enabled
immediately.
00000: This setting clear the set user password
and disables password protection.
When you set P07.00 to a non-zero value, the
value is the user password. After you exit the
function code editing interface, the password
protection function is enabled within 1 minute. If
password protection is enabled, "0.0.0.0.0" is
0
○
