INVT Goodrive18 Series User Manual

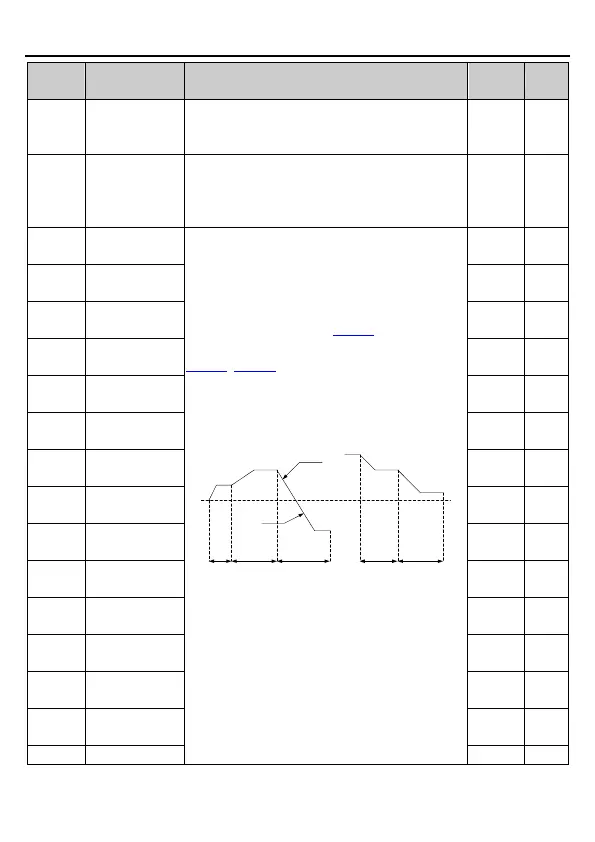

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-82-
Function
code
Name
Description
Default
value
Modify
2: Cyclic running. The VFD will keep on running,
and the VFD does not stop until receiving a stop
command.
P10.01
Simple PLC
memory
selection
0: Power loss without memory
1: Power loss with memory. The running stage
and frequency of PLC are recorded at power
loss.
0
○
P10.02
Multi-step speed
0
For frequency setting, 100.0% corresponds to
the max. output frquency P00.03.
When selecting simple PLC running, set
P10.02–P10.33 to the running frequency and
direction at each step.
Note: The multi-step sign determines the
running direction of simple PLC. The negative
value means reverse running.
P10.02
P10.04
P10.06
P1032
P10.30
P10.28
DEC time
(2 steps)
ACC time
(2 steps)
P10.03 P10.05 P10.07 P10.31 P10.33
Multi-step speeds are in the range of -f
max
–f
max
and can be set continuously.
Goodrive18 series VFD can set 16 steps of
speed, which are selected by the combination of
multi-step terminals 1–4, corresponding to the
speed 0 to speed 15.
0.0%
○
P10.03
Running time of
step 0
0.0s
○
P10.04
Multi-step speed
1
0.0%
○
P10.05
Running time of
step 1
0.0s
○
P10.06
Multi-step speed
2
0.0%
○
P10.07
Running time of
step 2
0.0s
○
P10.08
Multi-step speed
3
0.0%
○
P10.09
Running time of
step 3
0.0s
○
P10.10
Multi-step speed
4
0.0%
○
P10.11
Running time of
step 4
0.0s
○
P10.12
Multi-step speed
5
0.0%
○
P10.13
Running time of
step 5
0.0s
○
P10.14
Multi-step speed
6
0.0%
○
P10.15
Running time of
step 6
0.0s
○
P10.16
Multi-step speed
0.0%
○
