INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-87-
Function
code
Name
Description
Default
value
Modify
Output current A
Output frequency f
Current-limit
threshold
Set
frequency
Acceleration
Constant
speed
Time t
Time t
P11.05 setting range: 0x00–0x12
P11.06 setting range: 50.0–200.0%
P11.07 setting range: 0.00–50.00Hz/s
P11.08
VFD/motor
OL/UL
pre-alarm
selection

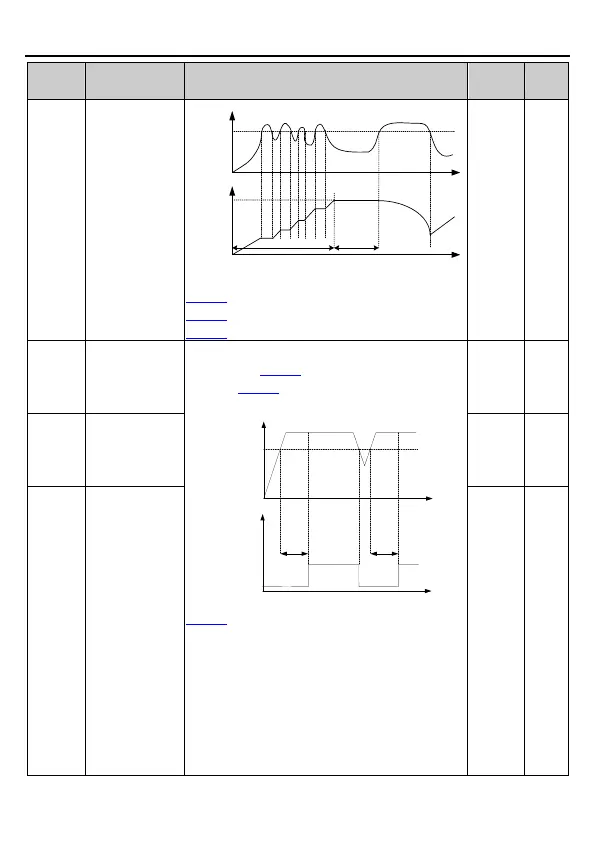

If the output current of the VFD or motor is
greater than P11.09 and the lasting time
exceeds P11.10, the overload alarm signal is
output.
Y,
RO1, RO2
Output current
Overload pre-alarm
threshold
Time t
Time t
Pre-alarm time tPre-alarm time t
P11.08 indicates whether to enable and define
the overload pre-alarm of the VFD or motor.
Setting range: 0x0000–0x1131
LED ones:
0: Motor OL/UL pre-alarm, relative to the motor
rated current
1: VFD OL/UL pre-alarm, relative to the VFD
rated current
LED tens:
0x0000
○
P11.09
Overload
pre-alarm
detection
threshold
150%
○
P11.10
Overload
pre-alarm
detection time
1.0s
○
