iPECS-LIK
Feature Description & Operation Manual Issue 6.0d1
433

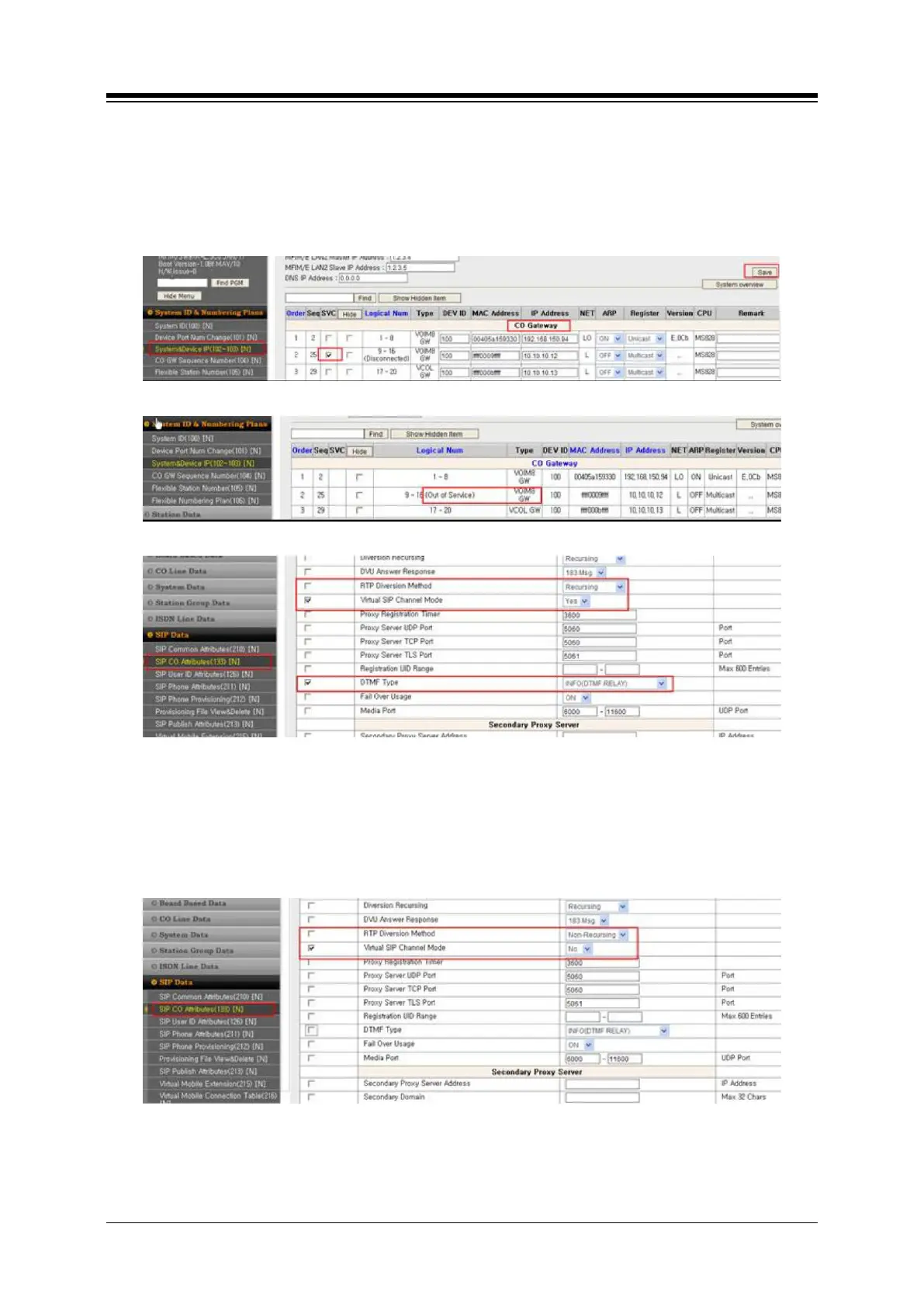

(‘CO VoIP Mode’ in PGM 141 is set to ‘SIP Only’ automatically)
c.f) ‘RTP Diversion Method’ was added in PGM 133. But currently it is only for
VCOL.
If we do not need this visible then I will remove or make this display only later
− set ‘DTMF Type’ in PGM 133 to one of Outband signaling (Outband signaling
only, not INBAND and 2833)
3. Unregister VCOL (purpose : replace a virtual with a physical VOIM)
− SIP Data / PGM 133 : set ‘Virtual SIP Channel Mode’ to ‘No’
(state is set to disconnected automatically)
(‘RTP Diversion Method’ is automatically set to ‘Recursing’)
('CO VoIP Mode’ in PGM 141 is set to ‘COMMON’ automatically)
− You can replace type, MAC and IP address for other physical CO slot module.
4. VCOL attributes
− Everything is same as a normal SIP CO line channel
− in PGM 133, input Proxy, Domain, and other attributes
