Chapter 5 MACHINE DISASSEMBLY
UNI-5 Service Manual 5-1

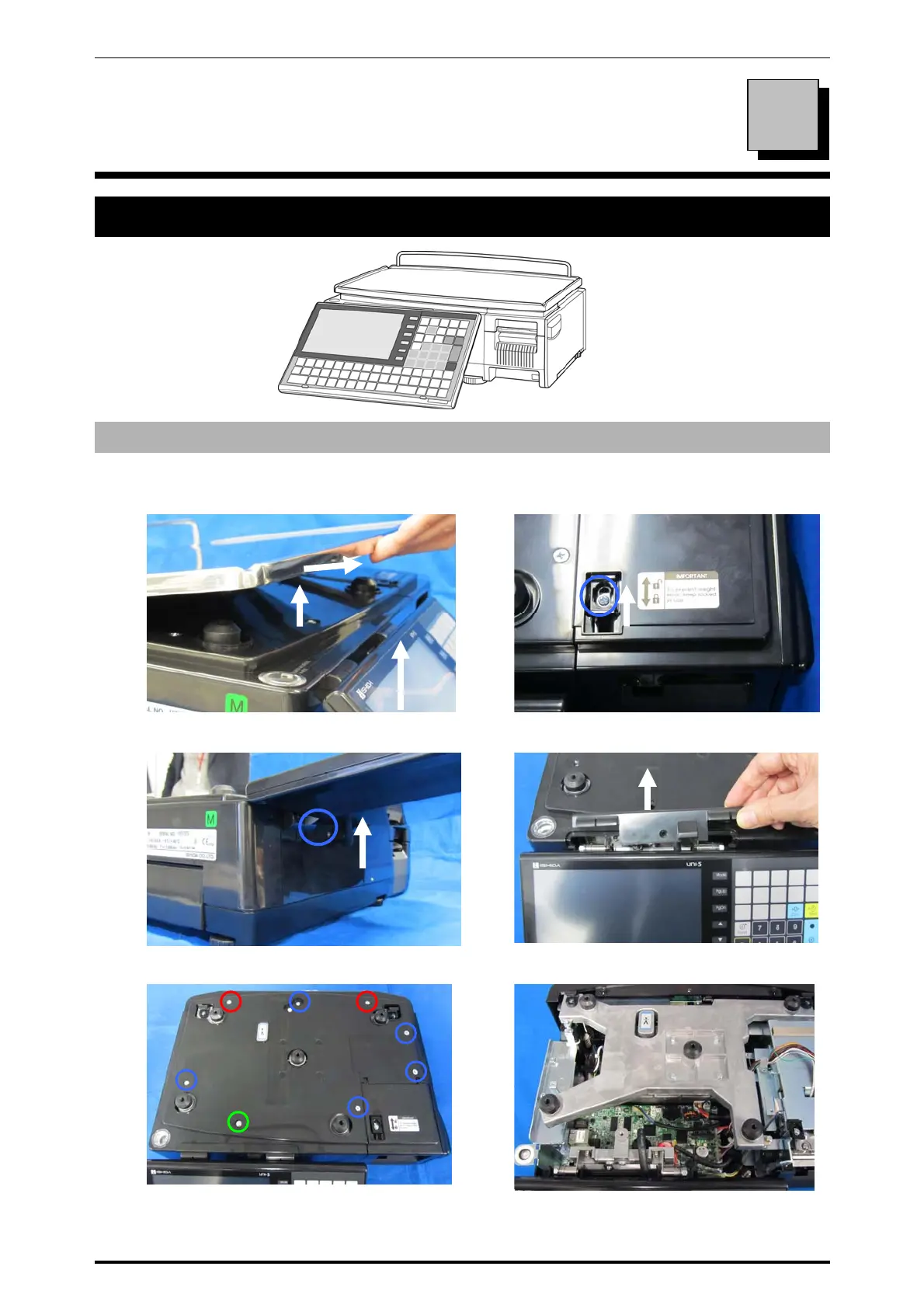

MACHINE DISASSEMBLY
5.1 BENCH TYPE
5.1.1 UPPER CASE
1.
Hold up the front side of the weigh platter
and pull to remove the platter.
2.
Remove the lock.
3.
Raise the operation panel and remove the
screw fixing the hinge cover.
4.
Make the operation panel angle about 45
and pull out the hinge cover.
5.
Remove the five screws (blue), two tapping
screws (red), and one TP screw (green).
6.
Remove the upper case.
* Reverse this procedure for assembly.
5
Upper case
Weigh platter holder
