ISHIDA Uni-5 Service Manual

Chapter 2 ASSEMBLY DRAWINGS
UNI-5 Service Manual 2-5

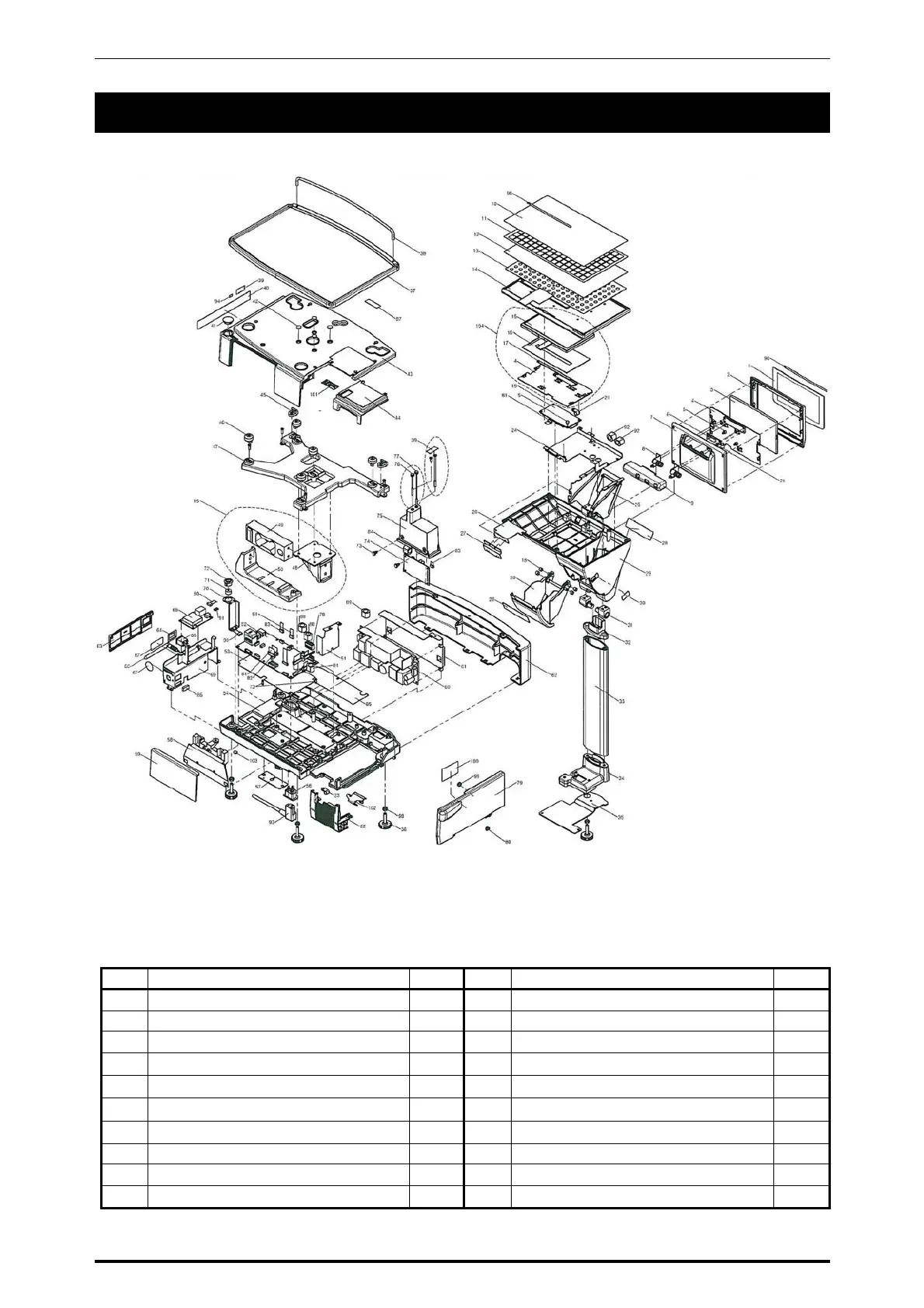

2.3 ELEVATED SINGLE PRINTER TYPE
Parts List (Elevated Single Printer type)
NO. PART NAME Q'TY NO. PART NAME Q'TY
1 SHEET DISPLAY PANEL 1 11 SHEET KEY BOARD-PLU 1
2
CASE FRONT POLE DISPLAY
1
12
SHEET KEY
BOARD
-
SETTING
1
3 LCD 1 13 KEY BOARD MEMBRANE 1
4 BRACKET LCD 2 14 CASE FRONT CONTROLL 1
5 ACCESSORY PCB SUPPORT 4 15 LCD TOUCH 1
6 PWB PK-263A 1 16 SHEET DOUBLE TAPE 1
7 CASE REAR POLE DISPLAY 1 17 GASKET 115mm 1
8
HINGE R
2
18
COLLAR SPACER
4
9 COVER JOINT REAR 1 19 PWB PK-261A 1
10 COVER KEY BOARD 1 20 CASE PRINTER 1
