ISHIDA Uni-5 - Elevated Type Disassembly

Chapter 5 MACHINE DISASSEMBLY
UNI-5 Service Manual 5-19

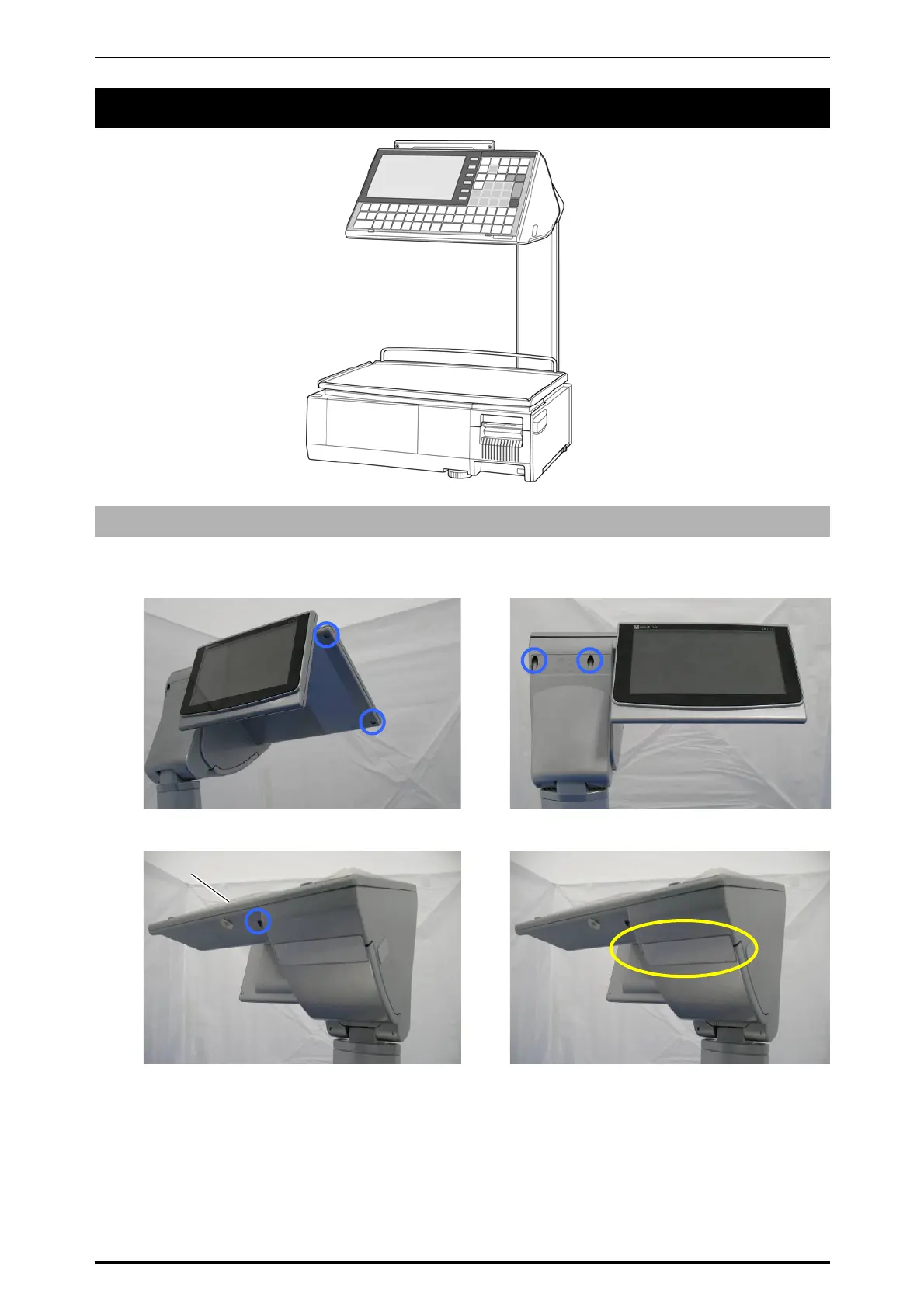

5.4 ELEVATED TYPE
5.4.1 OPERATION PANEL UNIT
1.
Remove the two screws located on the
bottom of the operation panel unit.
2.
Remove the two screws located at the
customer display side.
3.
Remove the screw located on the bottom of
the operation panel unit.
4.
, peel off the blind plate.
5.
Remove the two screws fixing the roll
holder.
6.
Pull out the holder.
Operation panel
