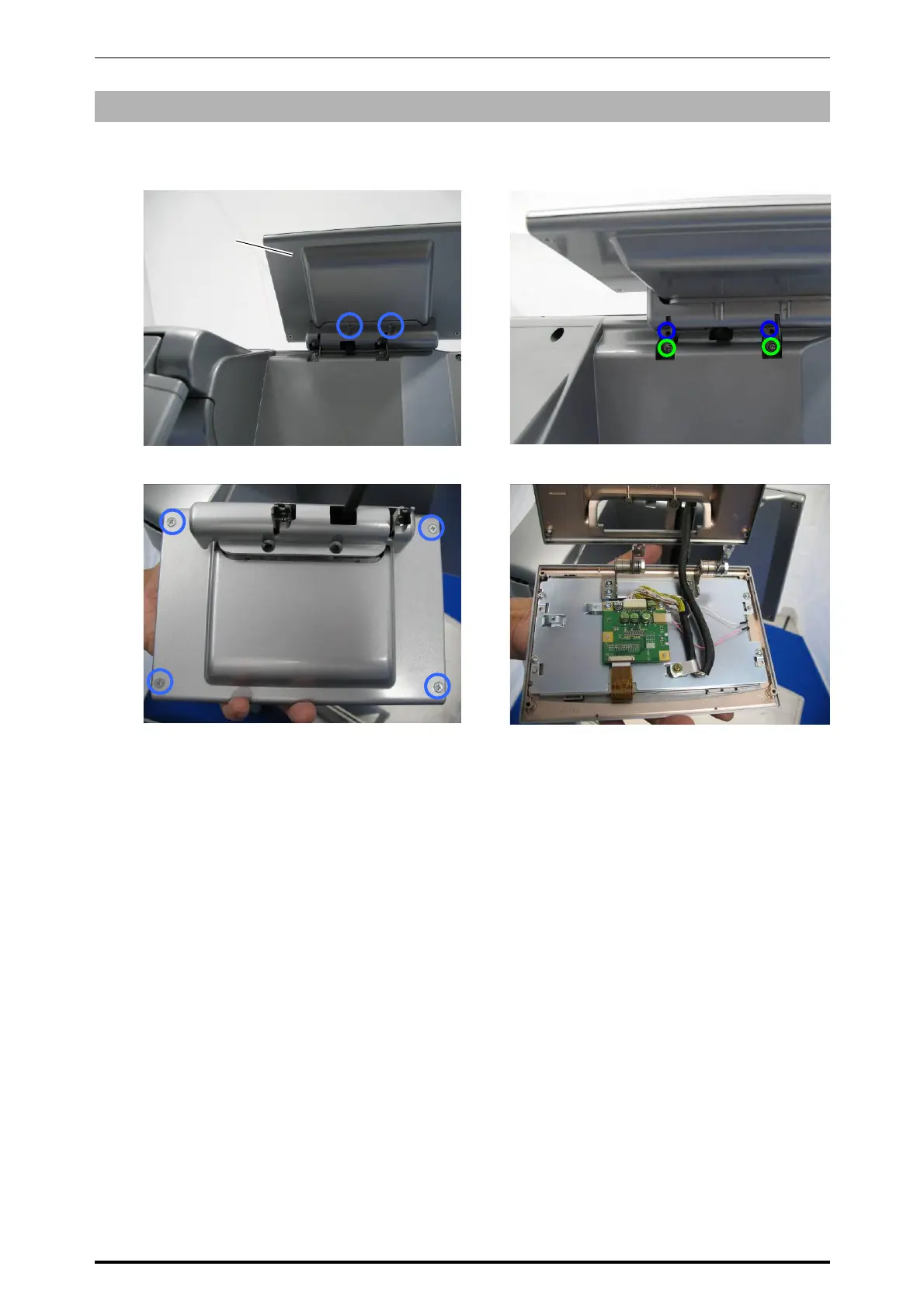

Chapter 5 MACHINE DISASSEMBL
Y
UNI-5 Service Manual
5-21
5.4.2
CUST
OMER DISPLA
Y UNIT
1.
Remove the two screws fixing the customer
display unit.
2.
Remove the two screws (blue) and loosen
the other two screws (green).
3.
Detach the customer display unit and
remove the four fixing screws.
4.
Open the customer display unit.
Roll holder
56
58
Table of Contents
default chapter
8
Table of Contents
8
Chapter 1 BASIC INFORMATION
10
Outer Dimensions for each Type
10
Outer Dimensions for Bench Type
10
Outer Dimensions for Pole Type
11
Outer Dimensions for Elevated Type
12
Specifications
13
Installation
14
Power Supply
14
Precautions for Installation
15
Chapter 2 ASSEMBLY DRAWINGS
16
Bench Type
16
Pole Type
18
Elevated Single Printer Type
20
Chapter 3 BLOCK DIAGRAMS
24
Block Diagram (Bench/Pole Type)
24
Chapter 4 ELECTRICAL SIGNALS
25
Main Board (Pk-260)
25
Key/Lcd Board (Pk-261)
30
Lcd Board (Pk-263)
32
Wireless Lan Board (Pk-265)
33
Self-Service Master Board (Pk-266)
34
Self-Service Master Board (Pk-267)
35
Scale Board (Pk-999)
36
Chapter 5 MACHINE DISASSEMBLY
37
Bench Type
37
Upper Case
37
Weigh Platter Holder
38
Main Board
39
Operation Panel
40
Customer Display
42
Label Sensor
44
Peel Sensor
44
Thermal Head Unit
45
Load Cell & A/D Board
46
Power Supply Unit
47
Motor Unit
48
Wireless Lan Unit
49
Pole Type
50
Pole Unit
50
Customer Display Unit
51
Self-Service Type
52
Self-Service Panel Unit
52
Panel Control Board
54
Elevated Type
55
Operation Panel Unit
55
Customer Display Unit
57
Elevated Unit
58
Chapter 6 MECHANICAL ADJUSTMENT
59
Four Corner Limit Space
59
Gear Engagement
60
Print Position
61
Thermal Head Position
62
