ISHIDA Uni-5 Service Manual

Chapter 5 MACHINE DISASSEMBLY
5-16 UNI-5 Service Manual

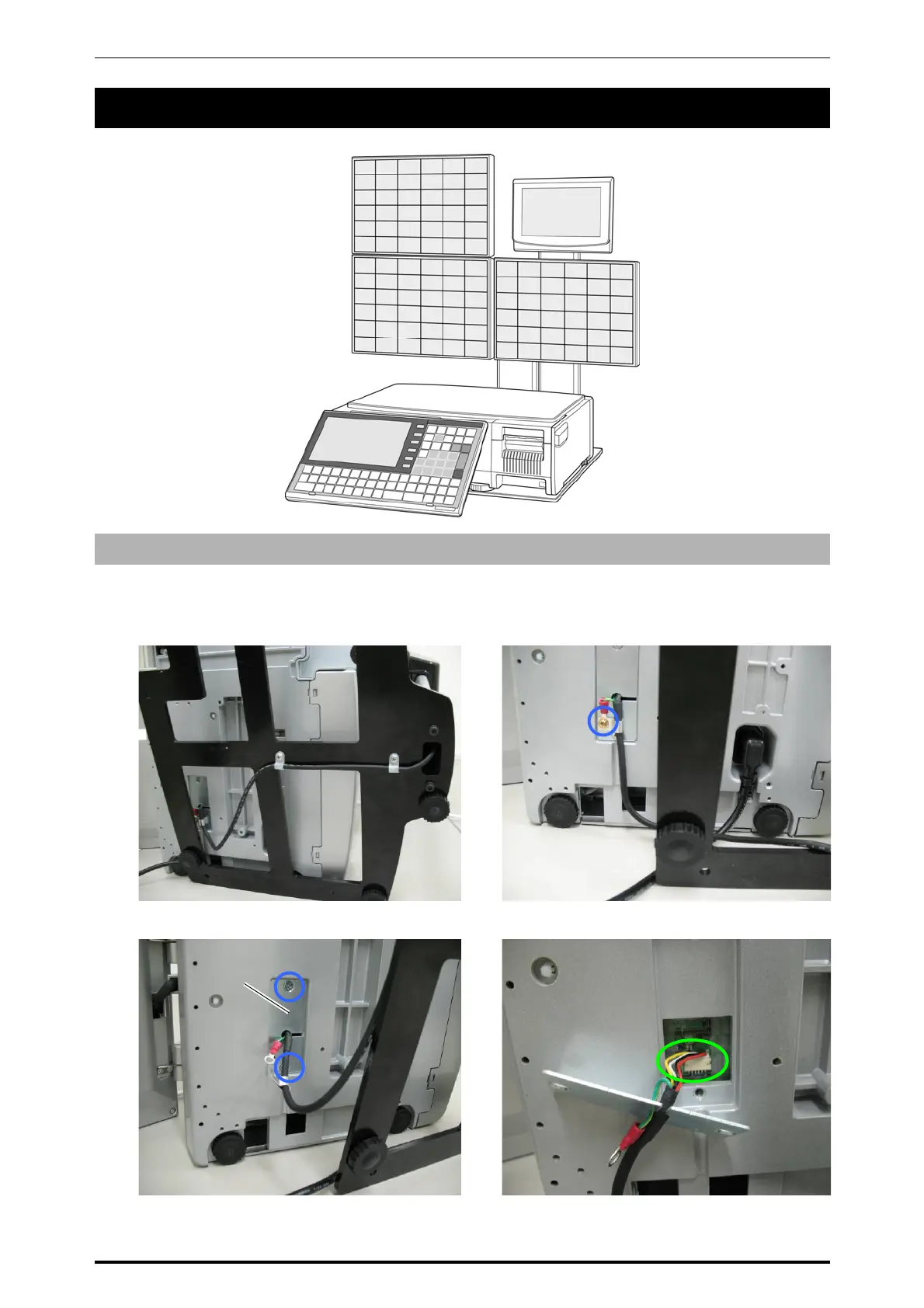

5.3 SELF-SERVICE TYPE
5.3.1 SELF-SERVICE PANEL UNIT
1.
Gently lay down the machine and
self-service panel unit so that you can work
from the bottom.
2.
Remove the screw fixing the cable clamp and
the grounding terminal.
3.
Remove the two screws fixing the blind
plate.
4.
Detach the blind plate and unplug the
connector.
Blind plate
