ISHIDA Uni-5 Service Manual

Chapter 5 MACHINE DISASSEMBLY
5-2 UNI-5 Service Manual
5.1.2 WEIGH PLATTER HOLDER
1.
Make sure that the upper case is removed.
(Refer to section 5.1.1)
2.

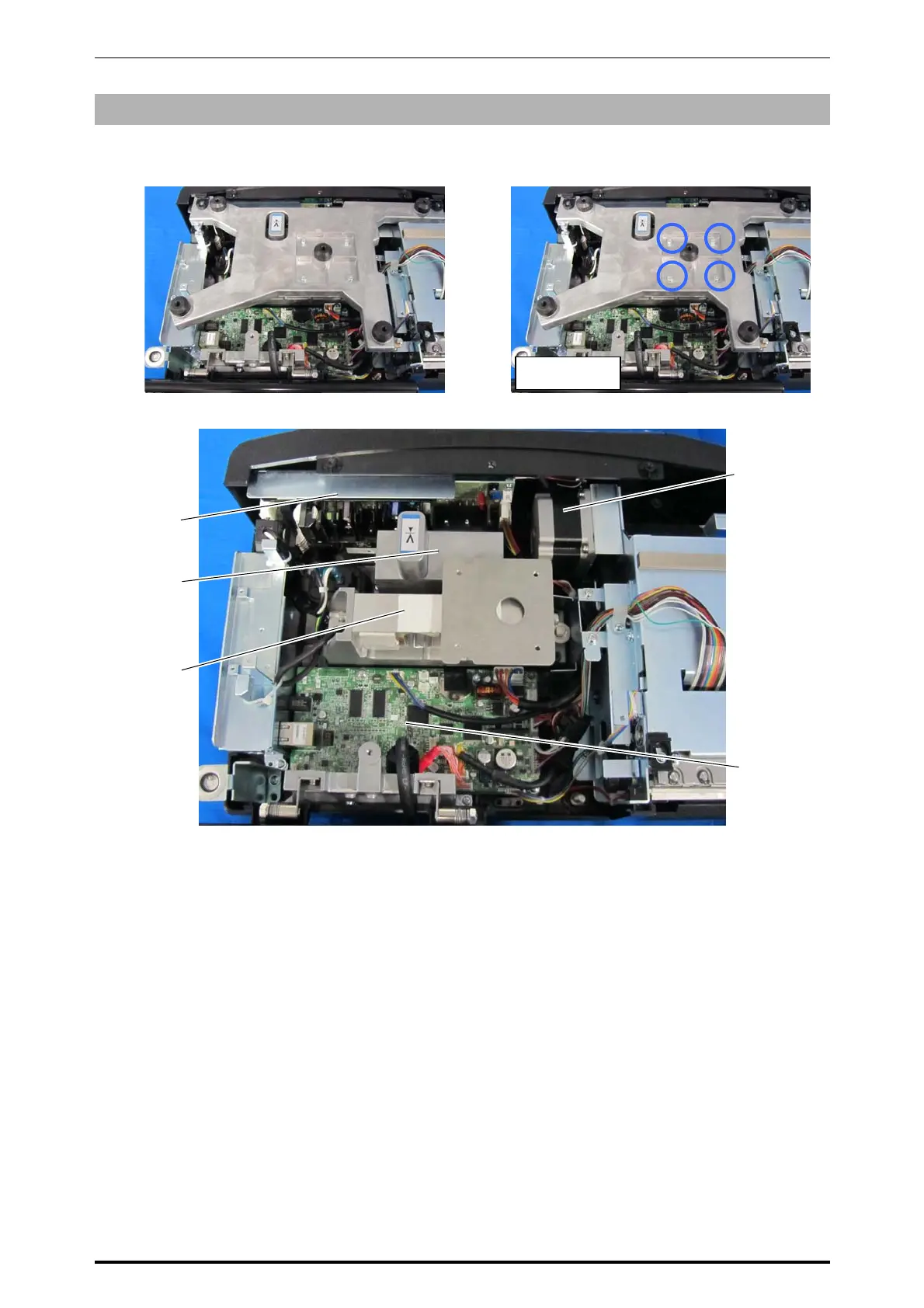

Remove the four screws fixing the weigh
platter holder.
3.
Remove the weigh platter holder.
* Reverse this procedure for assembly.
Motor
STP-29D1026
Main board
PK-260
AD board
P-999
(in the die-cast)
Power supply
ZWS150PAF-24/J
Load cell
CLC-25N
Motor
STP-29D1026
Weigh platter holder
