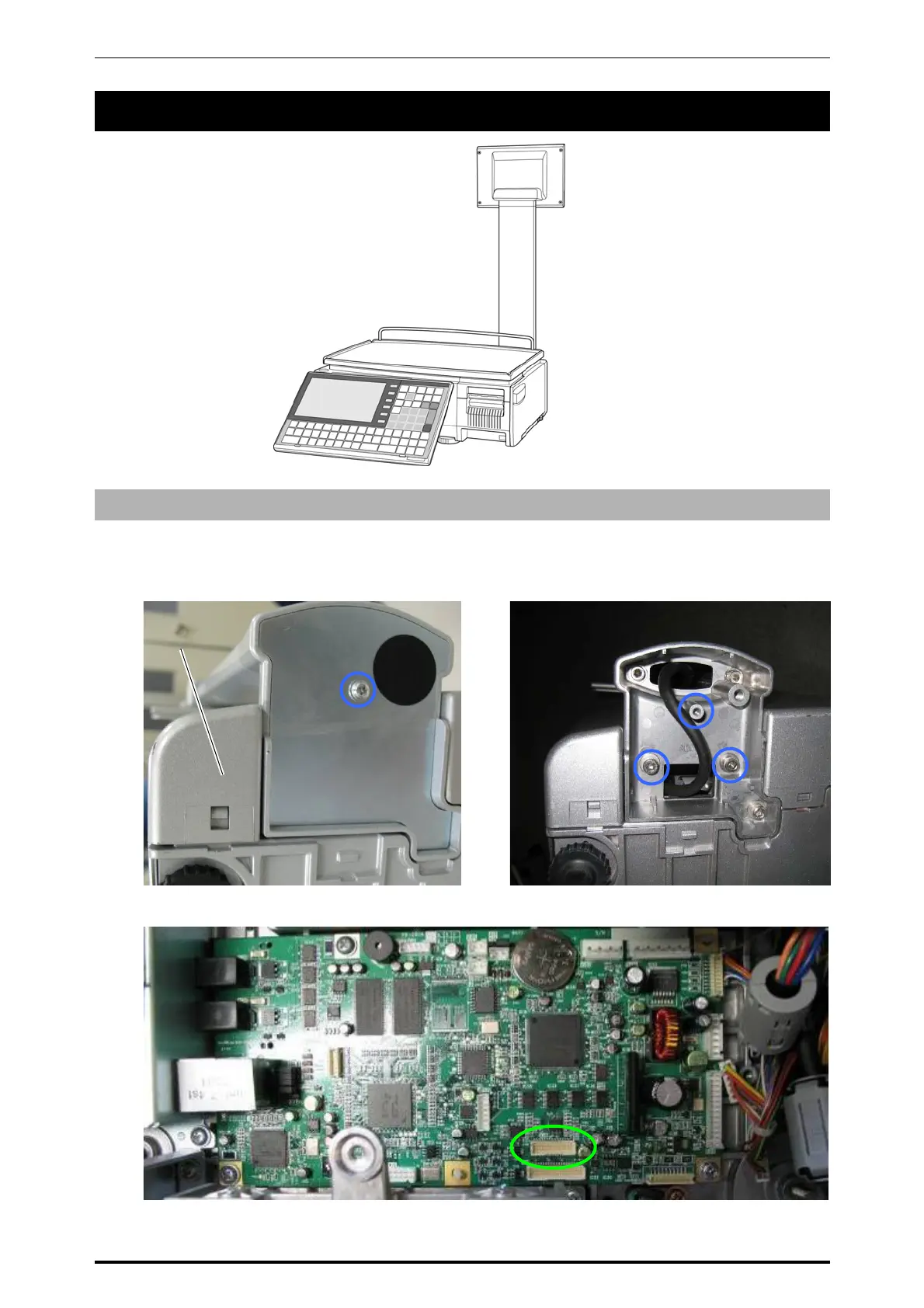

Chapter 5 MACHINE DISASSEMBLY
5-14 UNI-5 Service Manual
5.2 POLE TYPE
5.2.1 POLE UNIT
1.
Remove the screw fixing the blind plate
located on the bottom of the pole unit.
2.
Remove the three hexagon socket head
bolts and separate the pole unit from the
machine.
3.
Unplug the display harness connector on the main board to remove the pole unit.
* Reverse this procedure for assembly.
