ISHIDA Uni-5 Service Manual

Chapter 5 MACHINE DISASSEMBLY
UNI-5 Service Manual 5-9

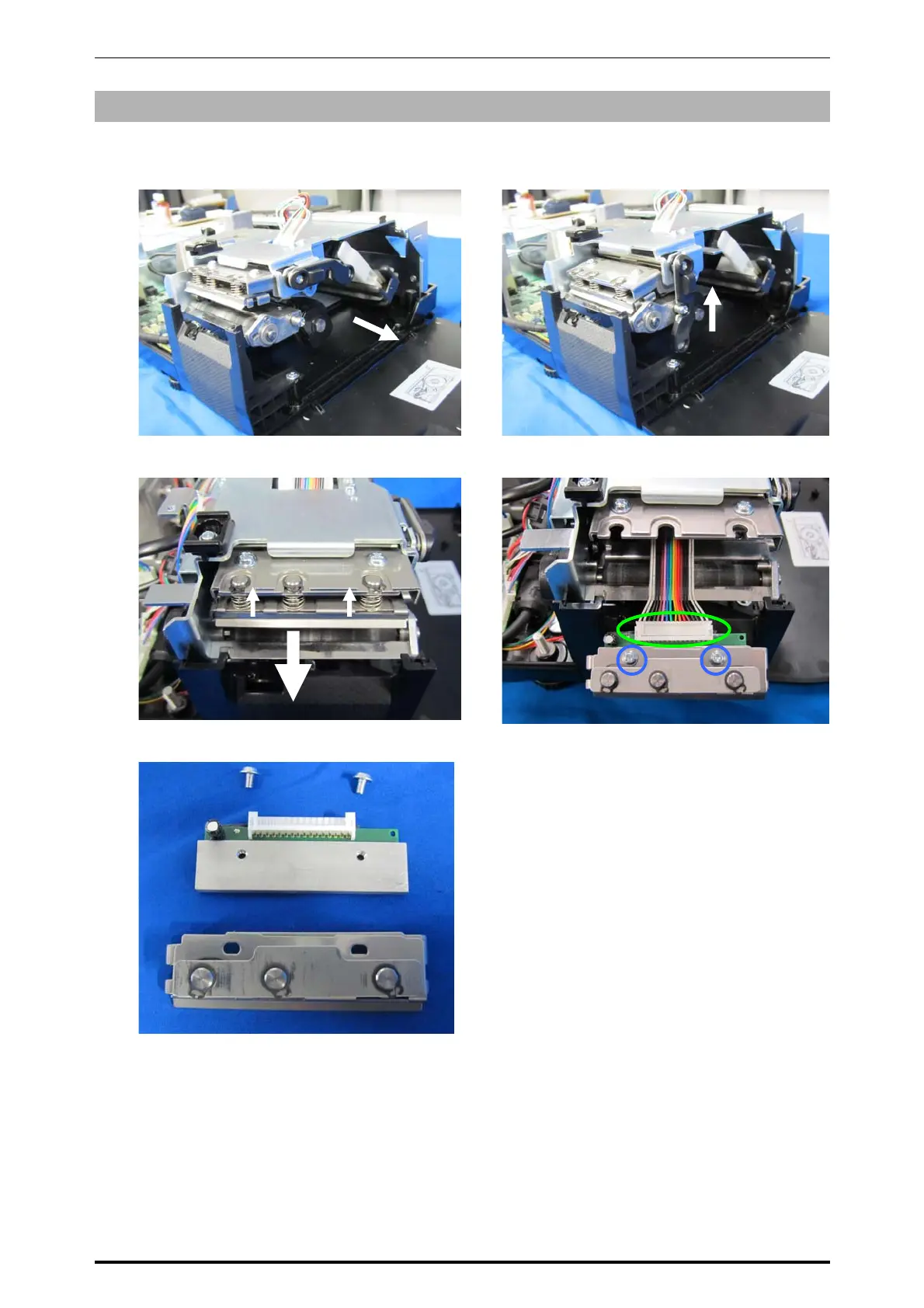

5.1.8 THERMAL HEAD UNIT
1.
Open the side cover.
2.
Raise the lock bar.
3.
Squeeze the springs by holding up the head
unit and pull out the thermal head unit.
4.
Unplug the connector and remove the two
screws.
5
This photo shows the breakdown of the
thermal head unit.
* Reverse this procedure for assembly.
