6A1 – 4 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

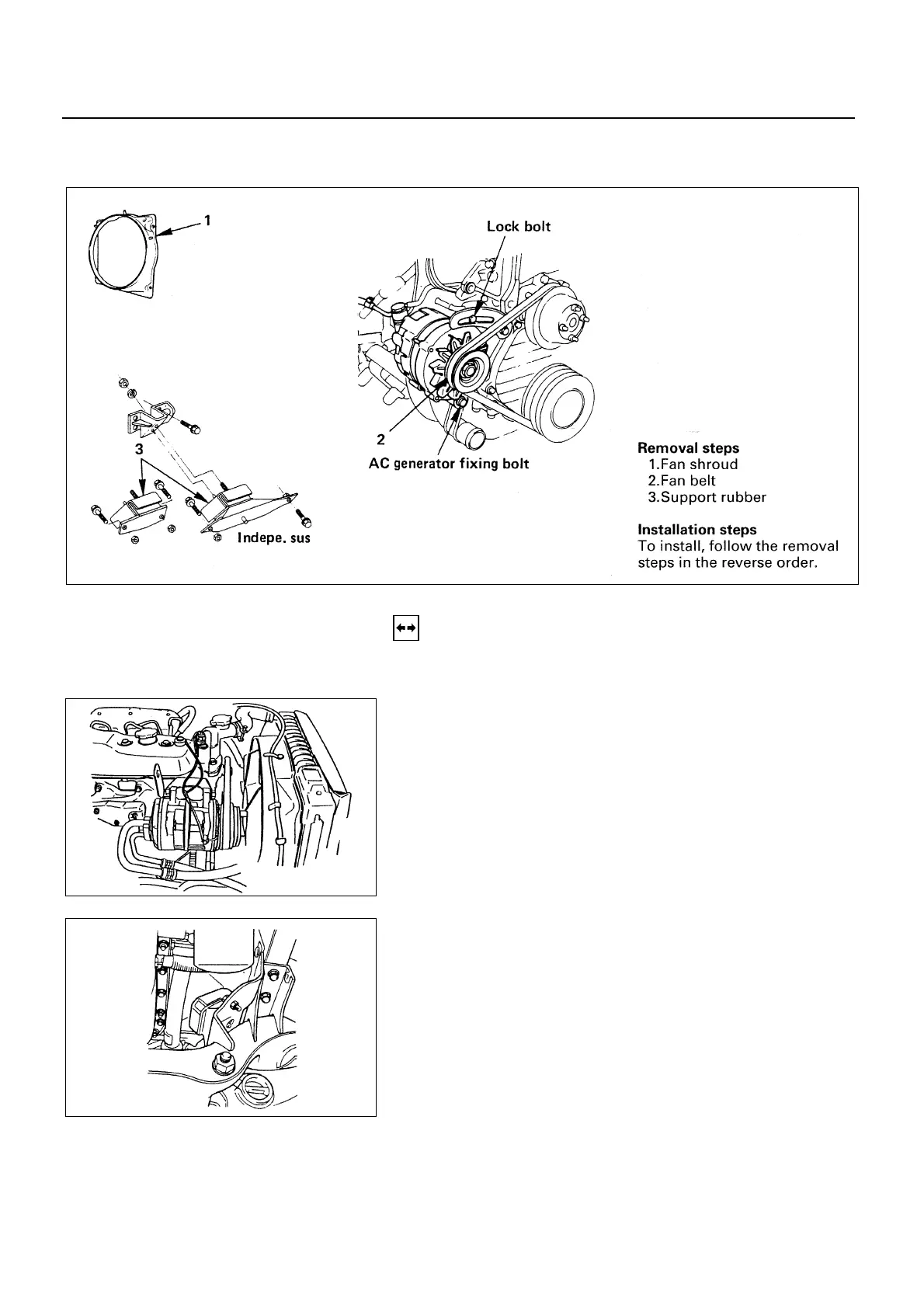

ENGINE MOUNT (RH)

REMOVAL

Preparation:

• Disconnect battery ground cable.

1. Fan Shroud

• Remove reservoir tank hose and fan shroud.

2. Fan Belt

• Remove adjust plate lock bolt.

• Loosen generator fixing bolt then remove fan belt.

3. Support Rubber

• Remove two fixing nuts at the crossmember side.

6A1-4-1.tif

6A1-4-2.tif

6A1-4-3.tif

Rigid sus
