ENGINE FUEL 6C - 55

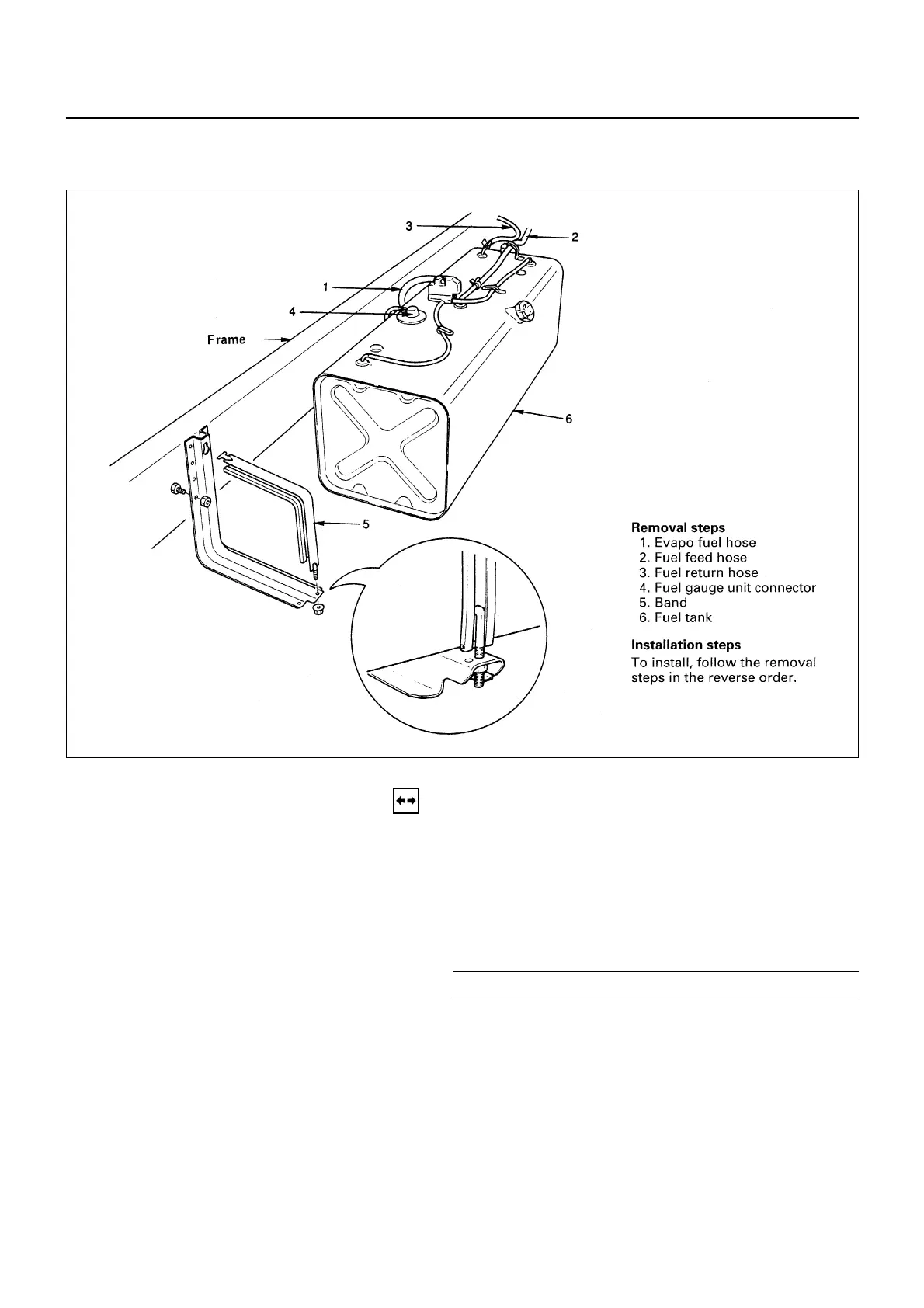

FUEL TANK
REMOVAL
Preparation:
• Disconnect battery ground cable.
• Loosen fuel filler cap.
• Drain fuel from drain plug.
• After the drain fuel, tighten the drain plug to the
specified torque.
N∙m (Kg∙m/lb∙ft)
29 (3/22)
1. Evapo Fuel Hose
2. Fuel Feed Hose
3. Fuel Return Hose
• Plug the hose to prevent fuel from getting spilt, and tie
it to the frame with the plugged end up.
4. Fuel Gauge Unit Connector
• Remove the connector of the fuel gauge.
5. Band
• Remove the nut of the fuel tank fixing band, and then
remove the band end on the frame side.
6C-54-1.tif
