ENGINE FUEL 6C - 9

INJECTION NOZZLE

REMOVAL

Preparation:

• Disconnect battery ground cable.

1. Injection Pipe

• Release injection pipe clip.

• Loosen the flare nut on the injection pump side.

• Loosen the flare nut on the injection nozzle side,

disconnect and put aside the pipe.

2. Leak off Pipe or Hose

3. Injection Nozzle

INSPECTION

• Set the nozzle in a nozzle tester.

Check there is no fuel leak in the nozzle seal when a

fuel pressure of kg/cm

is applied.

If there is leak, replace.

6C-8-1.tif

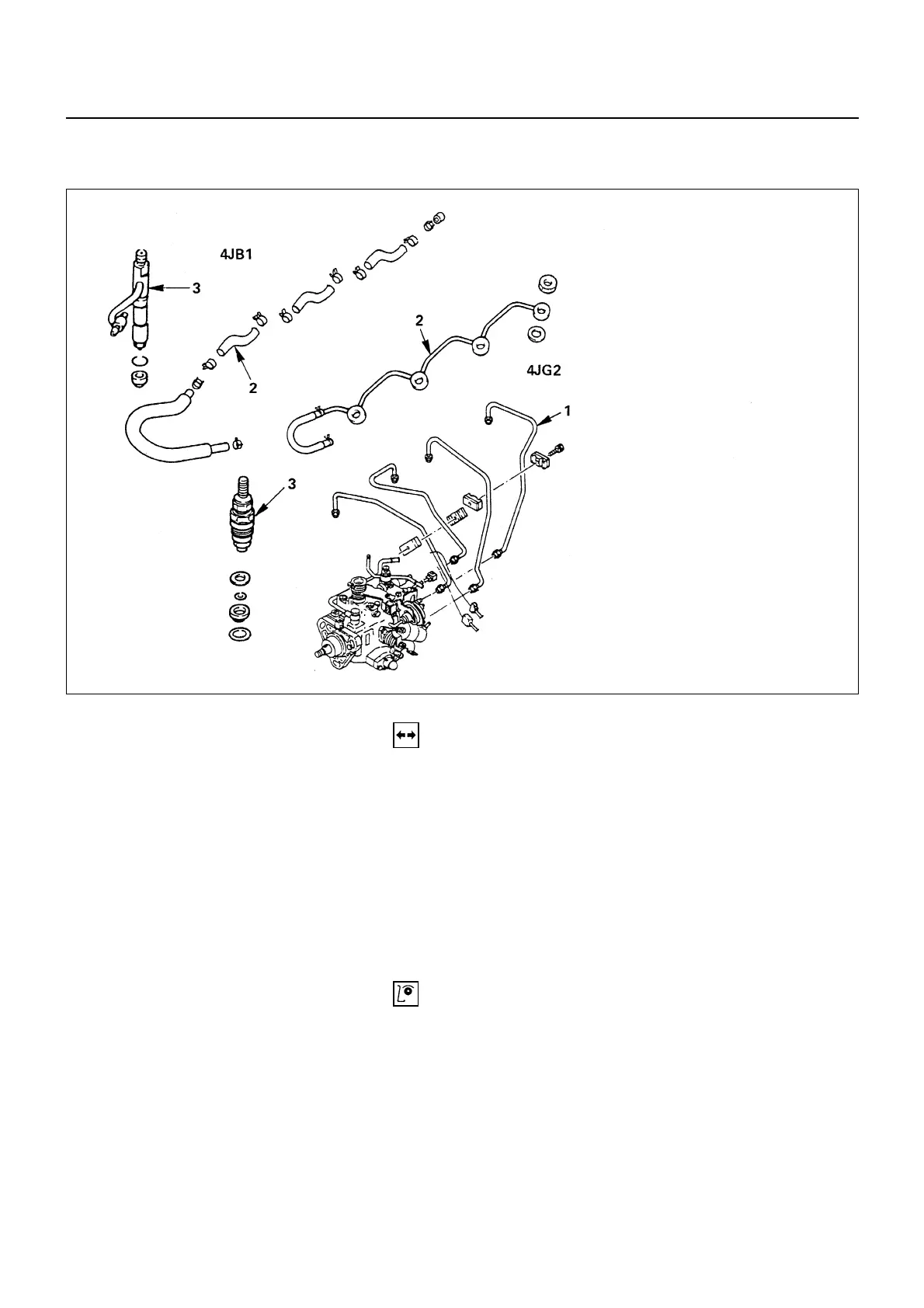

Removal steps

1. Injection pipe

2. Leak off pipe or hose

3. Injection nozzle

Installation steps

To install, follow the removal steps in

the reverse order.
