4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 15

CYLINDER HEAD COVER

REMOVAL

Preparation:

• Disconnect battery ground cable.

1. PCV Hose

• Disconnect the PCV hose from intake pipe side.

2. Cylinder Head Cover

INSTALLATION

2. Cylinder Head Cover

• Apply engine oil to the rocker arms and the valve

springs.

• Install the cylinder head cover gasket to the cylinder

head cover.

• The gasket must be perfectly smooth with no loose

areas.

• Tighten the cylinder head cover nuts to the specified

torque.

N∙m (kg∙m/lb∙ft)

13 (1.3/9)

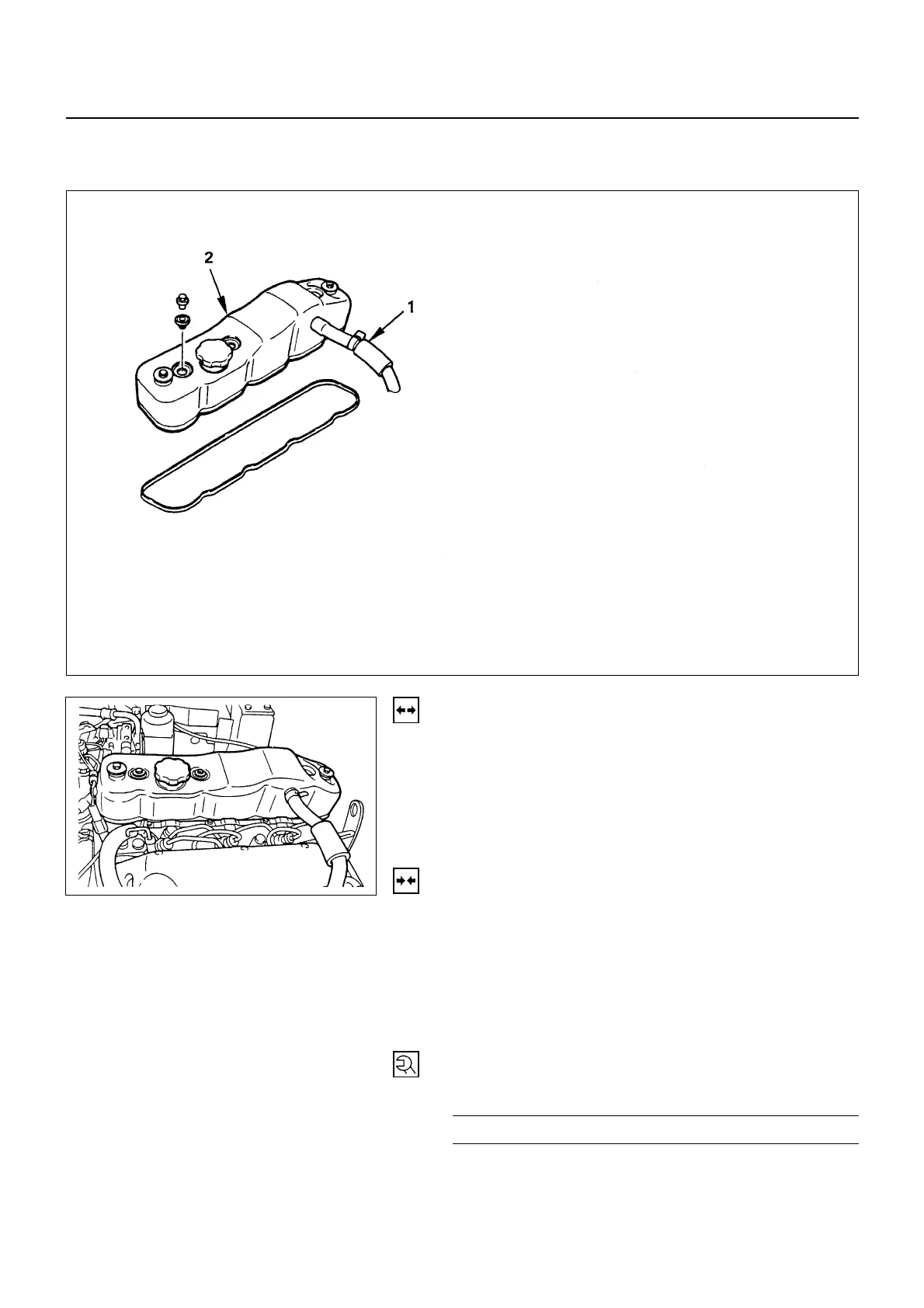

6A1-15-1.tif

6A1-15-2.tif

Removal steps

1. PCV hose

2. Cylinder head cover

Installation steps

To install, follow the removal steps in

the reverse order.
