6A1 – 14 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

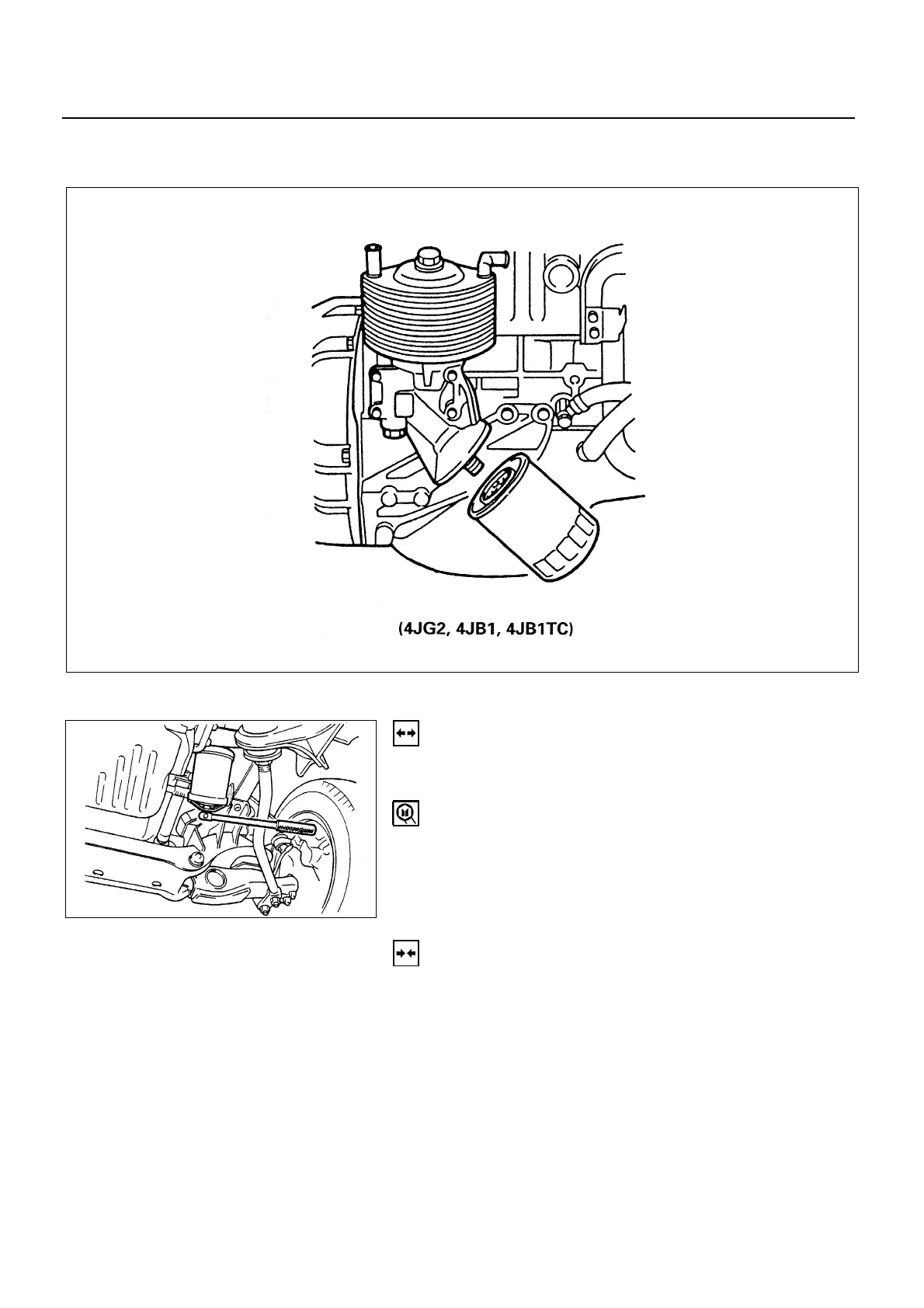

OIL FILTER CARTRIDGE

REMOVAL

• Place a receptacle beneath the oil filter to contain the

drained oil.

• Remove the oil filter cartridge using filter wrench.

Filter wrench: 5-8840-0200-0

INSTALLATION

• Lightly oil the O-ring of oil filter cartridge.

• Turn in the new oil filter cartridge by hand until the

sealing face is fiffted against the O-ring.

• Use the filter wrench to turn in the oil filter and

additional one and 1.1/8 turns.

• Start the engine and check for oil leakage from oil

filter.

6A1-14-1.tif

6A1-14-2.tif
