4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 71

CRANKSHAFT FRONT OIL SEAL (Gear Drive Type)

REMOVAL

Preparation:

• Disconnect battery ground cable.

• Drain coolant.

1. Fan Shroud

2. Power Steering Pump Drive Belt

• Loosen power steering pump mounting bolt and adjust

bolt, and remove the drive belt.

3. AC Generator Drive Belt

• Loosen AC Generator mounting bolt (under side) and

adjust plate lock bolt, and remove the drive belt.

4. Cooling Fan Assembly

• Remove clamp nut, and remove cooling fan assembly,

distant pipe, and fan pulley.

5. Crankshaft Damper Pulley

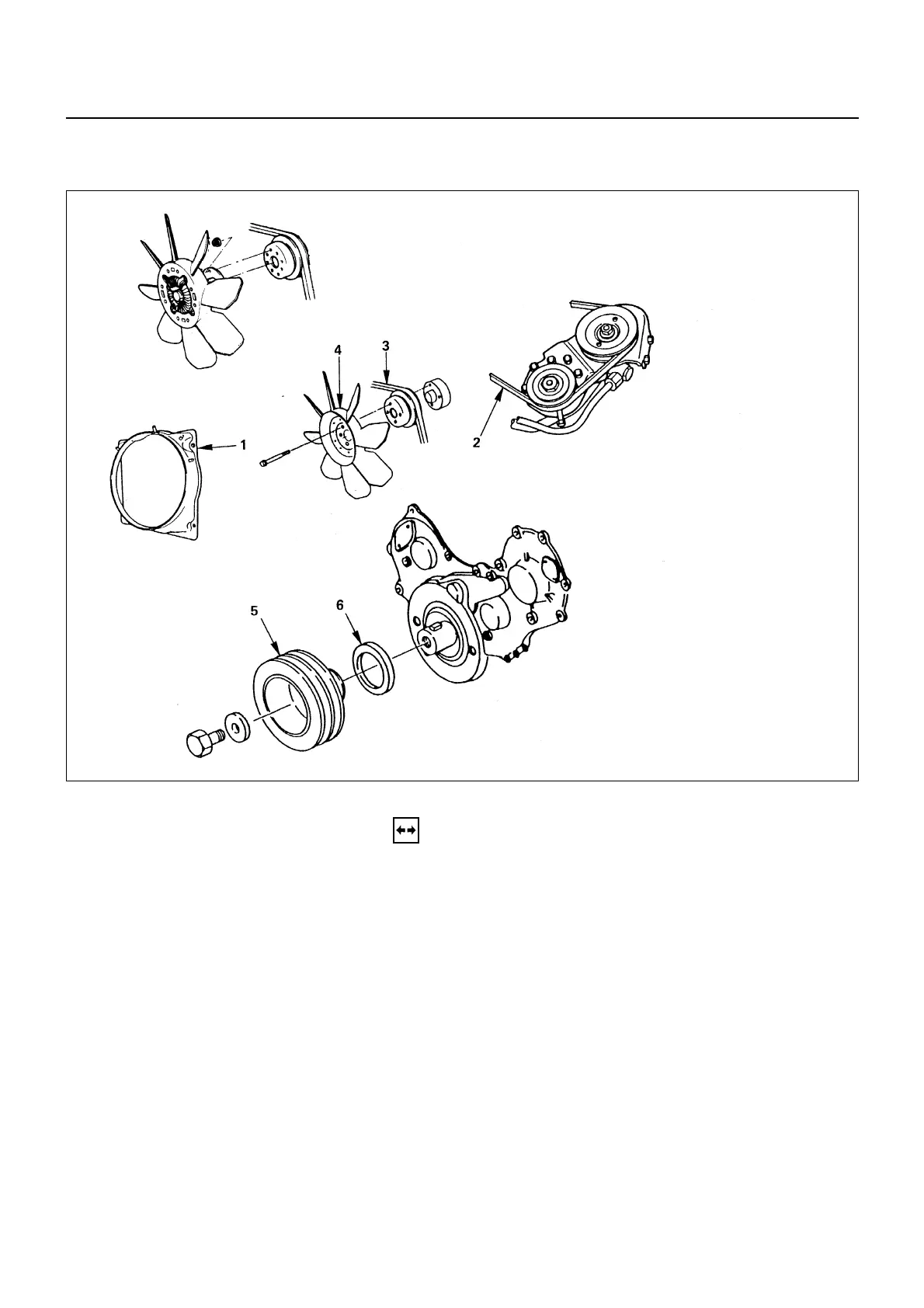

6A1-71-1.tif

Removal steps

1. Fan shroud

2. Power steering pump drive belt

3. AC generator drive belt

4. Cooling fan Assembly

5. Crankshaft damper pulley

6. Front oil seal

Installation steps

To install, follow the removal steps

in the reverse order.
