Isuzu NPR 4J Series - Gow Plug; Inspection on QOSII System Operation Thermo Switch

To Next Page

To Previous Page

QOSII PREHEATING SYSTEM 6D6 – 3

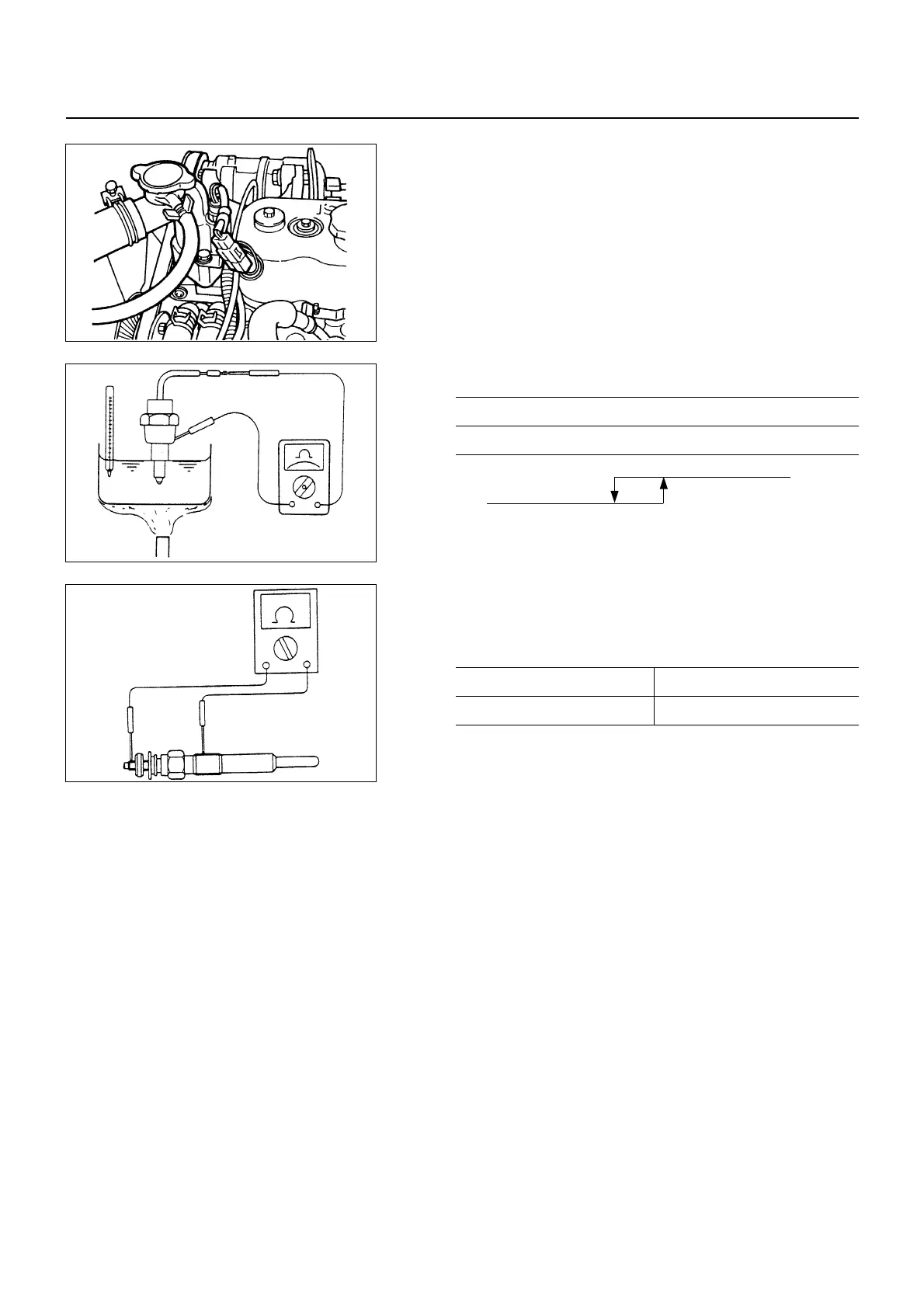

Inspection on QOSII System Operation

THERMO SWITCH

The thermo switch is located on the water outlet pipe.

Use a circuit tester to check the thermo switch for continuity.

OFF!ON : 7-13°C (44.6-55.4°F)

ON!OFF : Below 3°C (37.4°F)

10°C ON

OFF

3°C

GLOW PLUG

Use a circuit tester to test the glow plugs for continuity.

Glow Plug Resistance (Reference) Ohms

Conventional model Approximately 1.5

Quick on start model Approximately 0.9

6D6-3-1.tif

6D6-3-2.tif

6D6-3-3.tif
