GENERAL ENGINE MECHANICAL 6A – 17

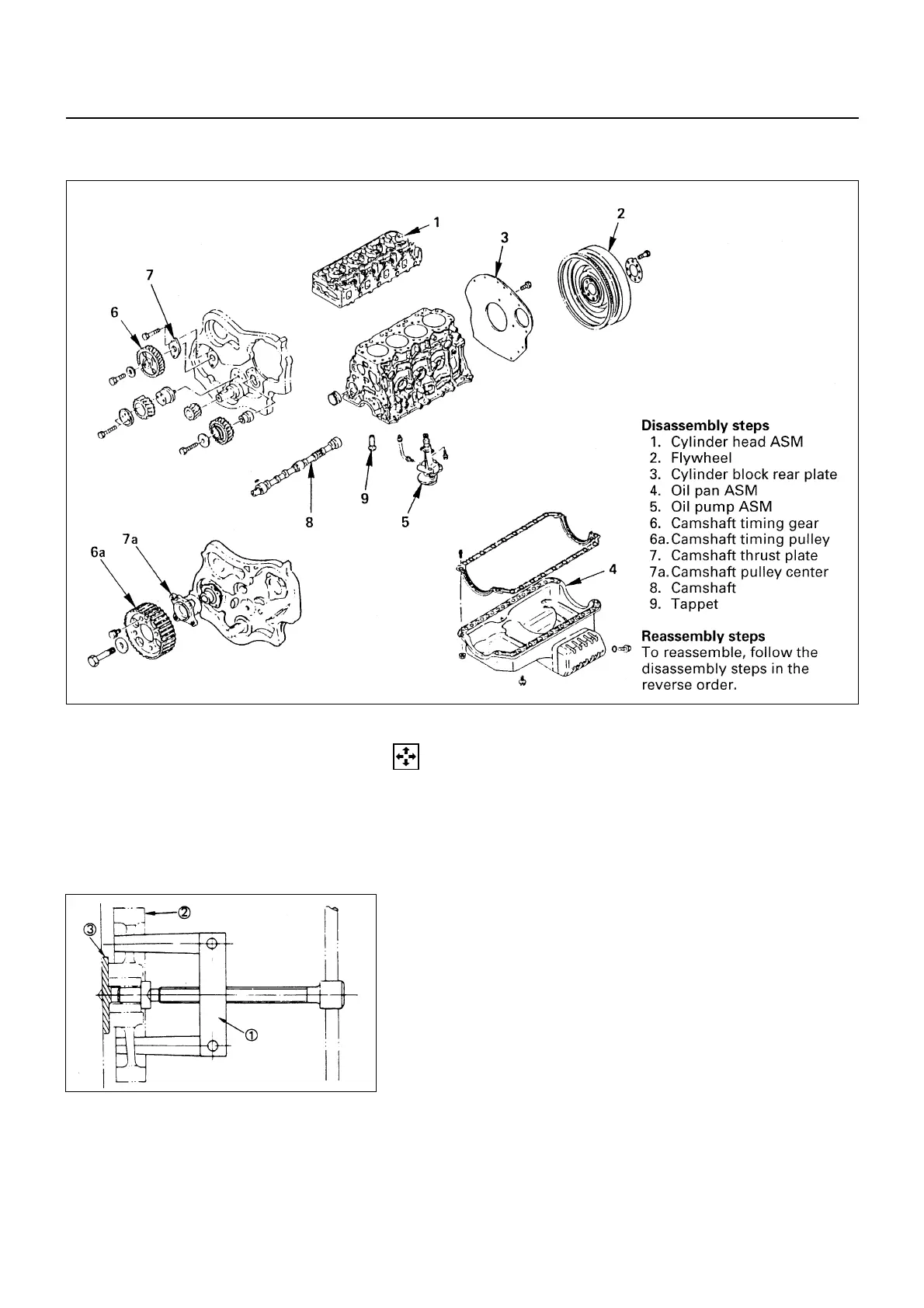

CAMSHAFT, TAPPET
DISASSEMBLY
1. Cylinder Head Assembly
2. Flywheel
3. Cylinder Block Rear Plate
4. Oil Pan Assembly
5. Oil Pump Assembly
6. Camshaft Timing Gear (Gear Drive Model)
• Remove the camshaft timing gear bolt from the
camshaft.
NOTE:
Hold the camshaft stationary to prevent the camshaft
from turning.
• Use the universal puller
!
to pull out the camshaft
timing gear
"
.
• Universal Puller: 5-8521-0002-0
Remove the thrust plate
#
.
6A-17-2.tif
6A-17-1.tif
