CHARGING SYSTEM 6D3 – 5
ON-VEHICLE SERVICE

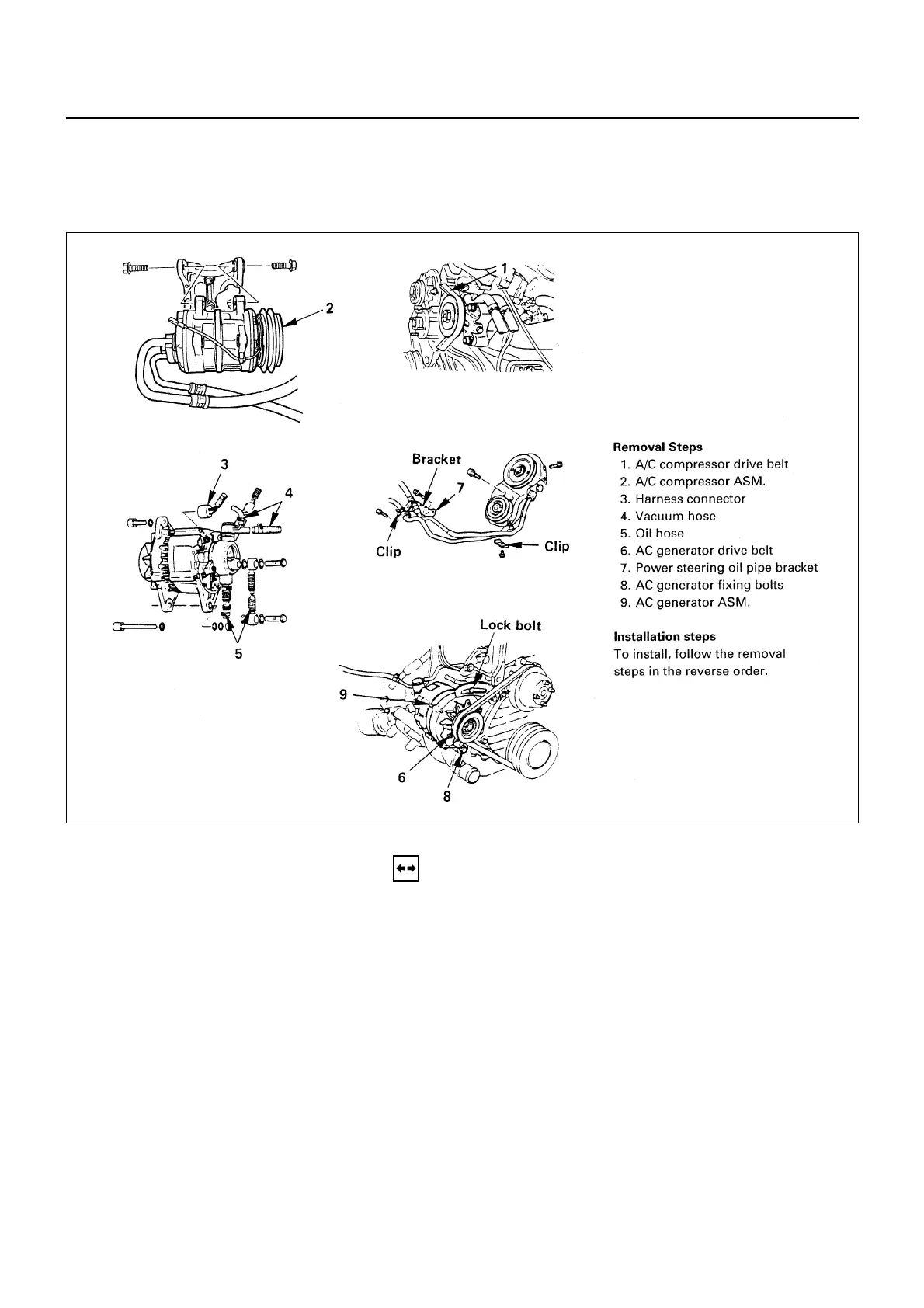

GENERATOR
REMOVAL
Preparation
• Disconnect battery ground cable.
1. A/C Compressor Drive Belt (A/C Model)
• Loosen the idler pulley lock nut
• Loosen the adjust bolt and remove the drive belt.
2. A/C Compressor Assembly (A/C Model)
• Disconnect the clutch harness connector.
• Remove the A/C compressor fixing bolts and
temporarily tighten the A/C compressor to chassis
frame side use the wire.
6D3-5-1.tif
To Next Page
