ENGINE COOLING 6B - 15

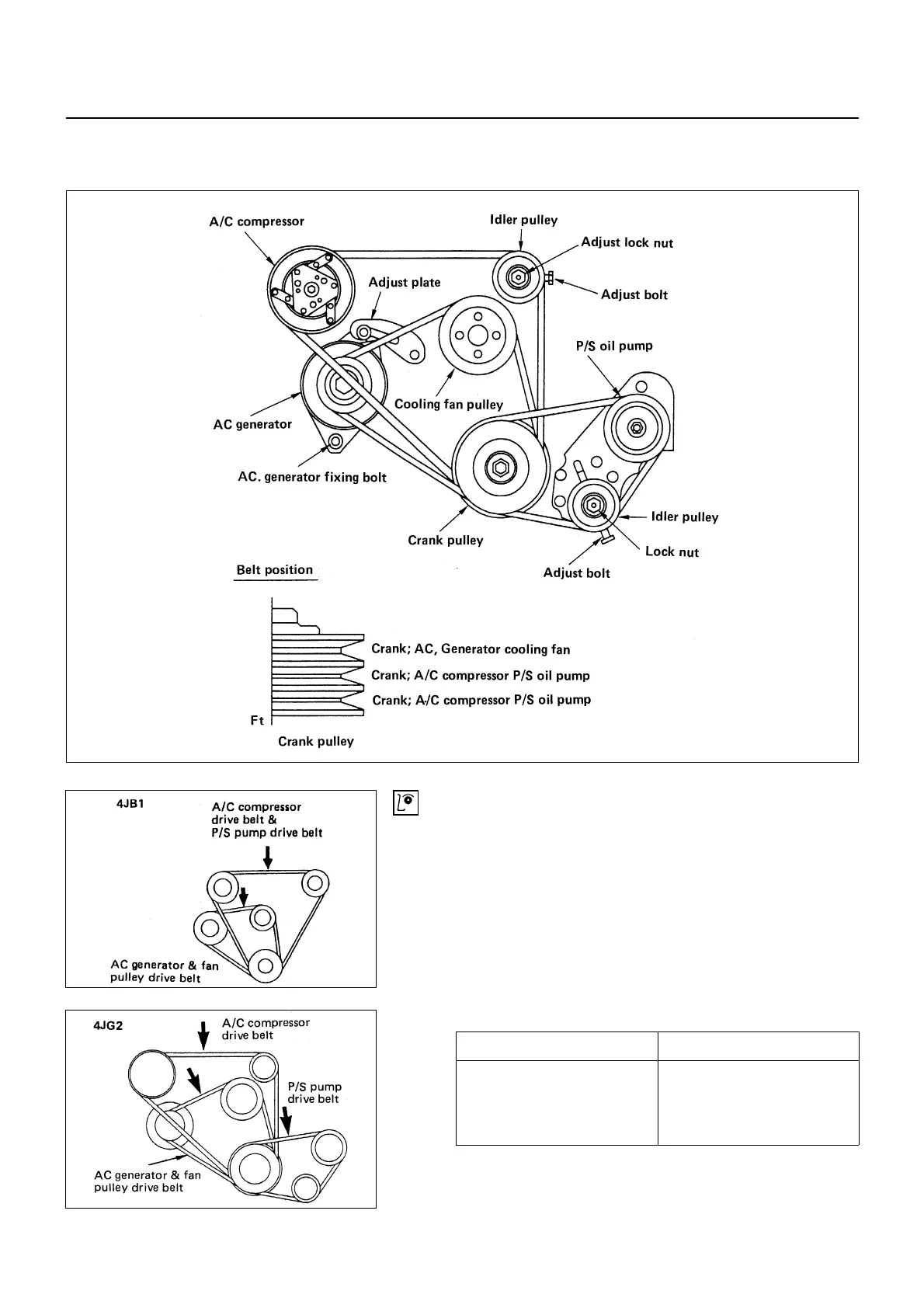

DRIVE BELT ADJUSTMENT

INSPECTION

Check drive belts for wear or damage, and replace with

new ones as necessary. Check belts for tension, and

adjust as necessary.

• Check drive belts tension.

• Push the middle of belts with a force of 98 N

(10 kg/22 lb) and check each bolt for deflection.

• Standard deflection

mm (in)

Tension at readjustment

AC generator & fan pulley

drive belt

A/C compressor drive belt

P/S pump drive belt

8 ~ 12 (0.31 ~ 0.47)

6B-14-1.tif

6B-14-2.tif

6B-14-3.tif
